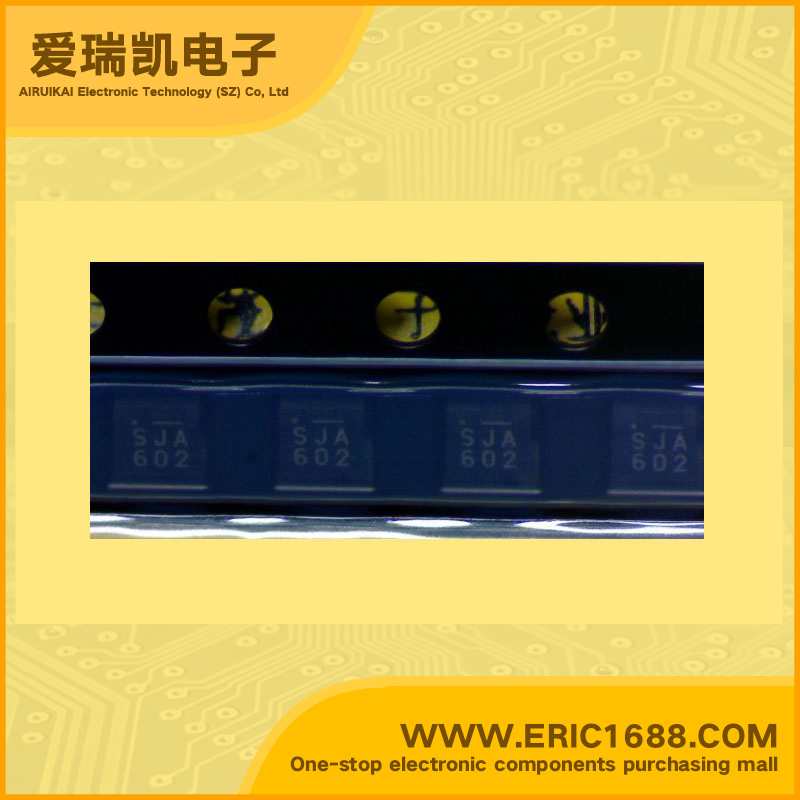

MIC2288YMLTR DC/DC Step-Up Converter 10V 22D-08L marking SJA PWM Boost Converter
| 控制方式 MODE | PWM |
| 输入电压VIN Input Voltage | 2.5~10V |
| 输出电压VOUT Output Voltage | 10V |
| 输出电流IOUT Output Current | 20mA |
| 震荡频率FOSC Oscillation Frequency | 1.2MHz |
| 内置FET Built-in FET | |
| Description & Applications | 1A 1.2MHz PWM Boost Converter • 2.5V to 10V input voltage range • Output voltage adjustable to 34V • Over 1A switch current • 1.2MHz PWM operation • Stable with ceramic capacitors • High-efficiency • Low input and output ripple • <1µA shutdown current • Output overvoltage protection • Over temperature shutdown • Thin SOT-23-5 package option • 2mm × 2mm leadless MLF™-8 package option • –40°C to +125°C junction temperature range • Organic EL power supply • TFT-LCD bias supply • 12V supply for DSL applications • Multi-output DC/DC converters • Positive and negative output regulators • SEPIC converters |
| 描述与应用 | 1A1.2MHz的PWM升压转换器 •2.5V至10V的输入电压范围 •输出电压可调至34V •超过1A开关电流 •1.2MHz的PWM操作 •稳定与陶瓷电容 •高效率 •低输入和输出纹波 •<1μA的关机电流 •输出过压保护 •过温关闭 •薄型SOT-23-5封装选项 •2毫米×2毫米无铅MLF™-8封装选项 •-40°C至+125°C的结温范围 •有机EL电源 •TFT-LCD偏置电源 •DSL应用的12V电源 •多输出DC/ DC转换器 •正，负输出稳压器 •SEPIC转换器 |
