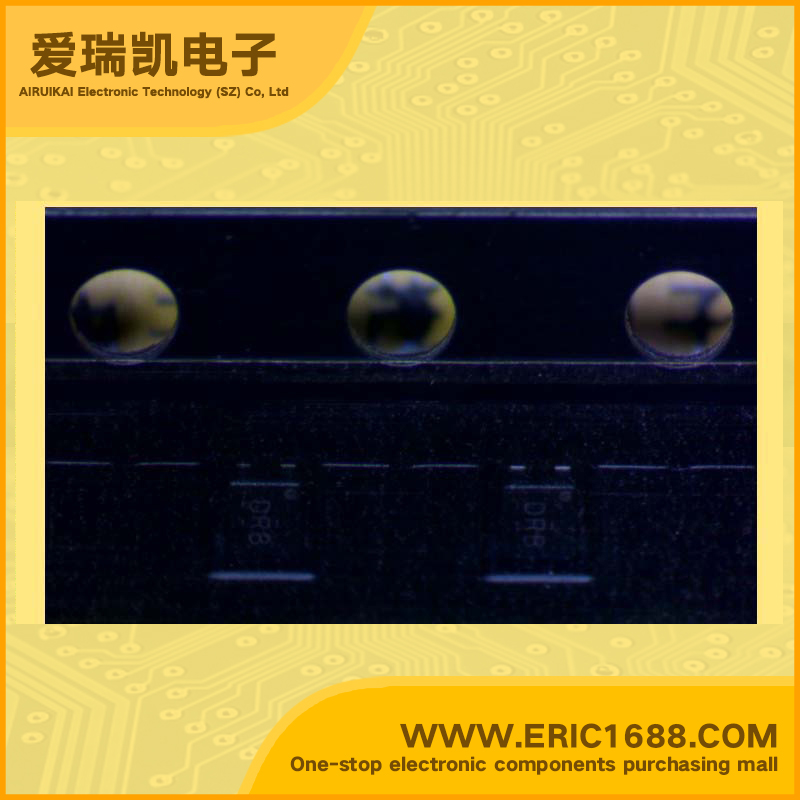

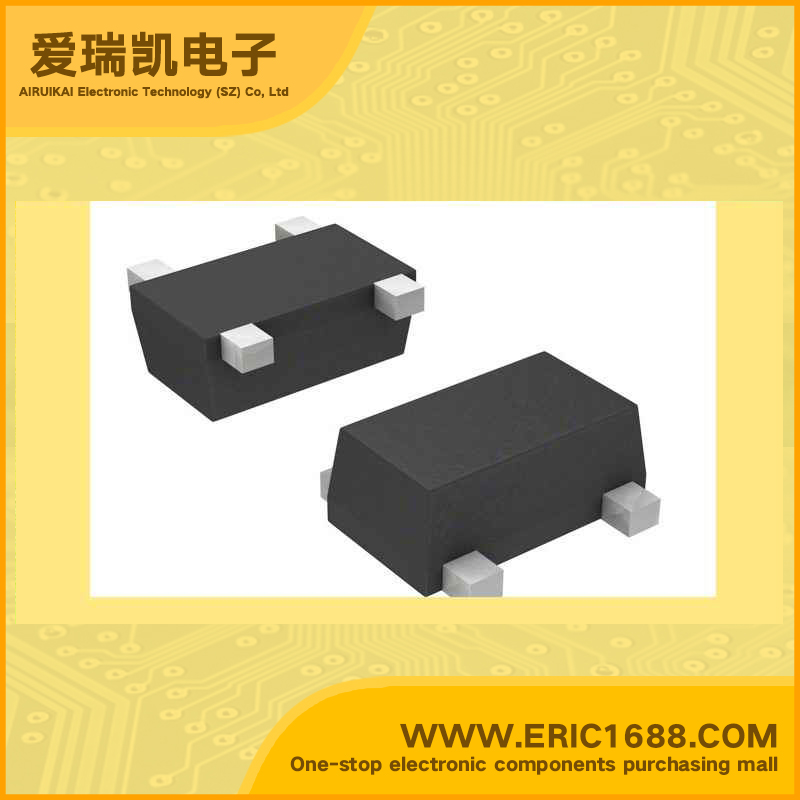

Temperature Sensor S-8120CPF SOT-543/SNT-4A marking DRB
| 感应温度 Sensing Temperature | -20℃~80℃ |
| 输出类型 Output Type | 2.4V~10V |
| 电源电压 Voltage - Supply | ±0.5°C |
| 精度 Accuracy | CMOS TEMPERATURE SENSOR IC The S-8110C/8120C Series is a family of high-precision temperature sensor ICs on a single chip with a linear output voltage for temperature changes. Each chip is composed of a temperature sensor, a constant current circuit, and an operational amplifier. It can be used at temperatures ranging from −40°C to +100°C. These devices have much better linearity than other temperature sensors such as thermistors, and can be used for a wide range of temperature control applications. Applications • Compensation of high-frequency circuits such as cellular phones and radio equipment • Compensation of oscillation frequency in crystal oscillator • LCD contrast compensation • Compensation of amplifier gain • Compensation of auto focus circuits • Temperature detection in battery management • Overheating prevention for charged batteries or halogen lights |
| Description & Applications | CMOS温度传感器IC S-8110C/8120C系列是一个家庭，一个单一的芯片温度变化的线性输出电压的高精度温度传感器IC。 每个芯片构成的温度传感器，一个恒定电流电路，以及运算放大器。 它可用于温度范围从-40°C至+100°C。这些器件具有更好的线性度比 如热敏电阻等温度传感器，可用于广泛的温度控制 的应用程序。应用 •如蜂窝电话和无线电设备的高频电路补偿 •在晶体振荡器的振荡频率补偿 •LCD对比度补偿 •放大器增益补偿 •自动对焦电路补偿 •电池管理方面的温度检测 •预防过热，充电电池，卤素灯 |
| 描述与应用 |
