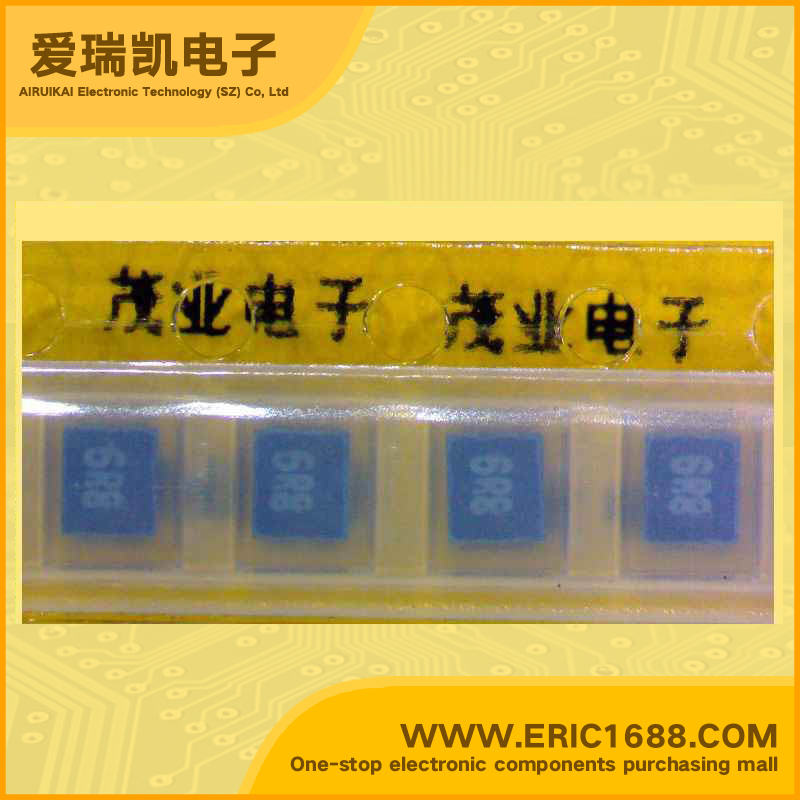

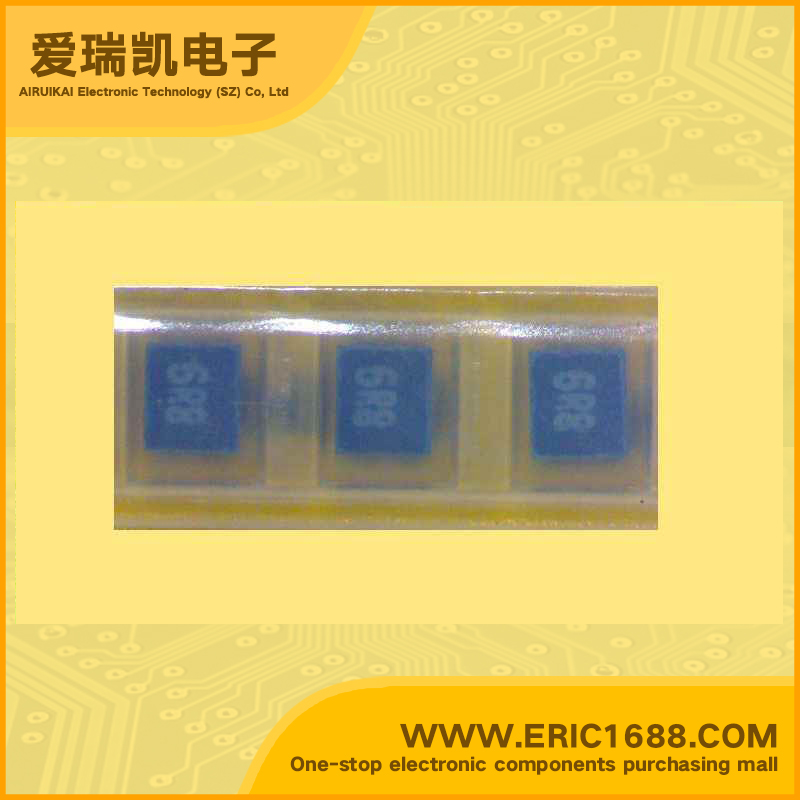

low power inductor NLC252018T-6R8M 6.8UH 2520-6R8m 6R8
| 电感值 Inductance | 6.8UH |
| 误差 Tolerance | ±20% |
| 额定电流 Current Rating | 275mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 20 @ 7.96MHz |
| 自振谐频率SRF Frequency - Self Resonant | 39MHz |
| DC电阻DCR DC Resistance (DCR) | 1Ω/Ohm |
| 屏蔽 Shielding | 无屏蔽 Unshielded |
| Description & Applications | NLC Series NLC2520 Type FEATURES • The NLC series feature low DC resistance and high current handling capacities, making them ideal for power supply line applications. • They are available in ranging from 2520 to 5650 types. |
| 描述与应用 | NLC系列NLC2520类型 特点 NLC系列具有低直流电阻和高电流处理能力，使它们成为理想的电源线应用。 它们从2520到5650种不等。 |
