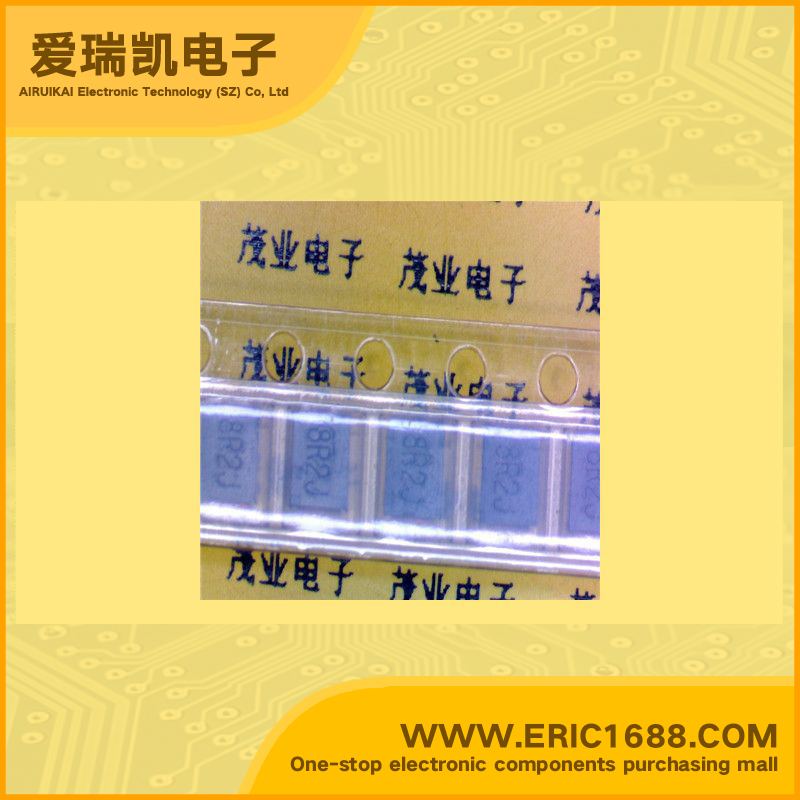

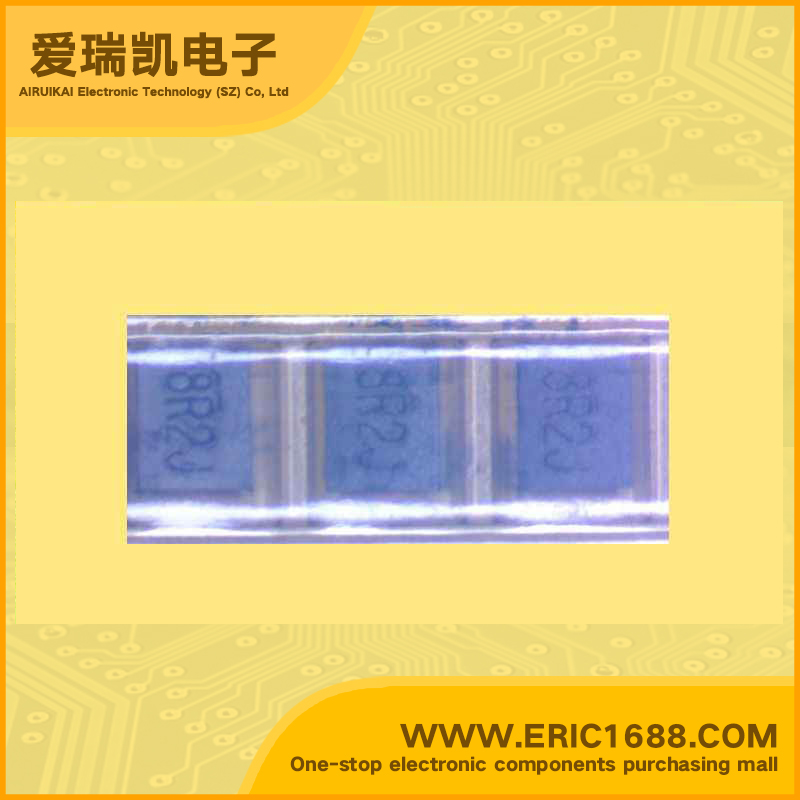

low power inductor NLV32T-8R2J-PF 8.2UH 3225-8R2 8R2J

Hot selling goods

Product description
电感值
Inductance
8.2UH
误差
Tolerance
±5%
额定电流
Current Rating
170mA
饱和电流
Current - Saturation
不同频率时的Q值
Q @ Frequency
30 @ 7.96MHz
自振谐频率SRF
Frequency - Self Resonant
35MHz
DC电阻DCR
DC Resistance (DCR)
2Ω/Ohm
屏蔽
Shielding
无屏蔽 Unshielded
Description & ApplicationsNLV Series NLV32 Type FEATURES • The product has good heat durability that withstands lead-free compatible reflow soldering conditions. • Lead-free material is used for the plating on the terminal • The electrical characteristics, reliability, shape and pad shape are the same as the previous NL series. • The product uses metal terminals, which realize excellent con-nection reliability. • Highly heat resistant thermoplastic resin is used to form the exterior package. • From 0.01µH to 100µH, all of the products in the E-12 series are J(±5%) tolerance products. • This product conforms to the RoHS standard.
描述与应用NLV系列NLV32类型 特点 该产品具有良好的耐热性,可承受无铅兼容回流焊条件。 无铅材料可用于终端上的镀敷 电气特性,可靠性,形状和焊垫的形状与前NL系列是相同的。 该产品采用金属终端,实现优异的连接可靠性。 外部包装是用高耐热性的热塑性树脂。 在E-12系列所有的产品中J(±5%)公差都是从0.01μH至100μH。 本产品符合RoHS标准。
