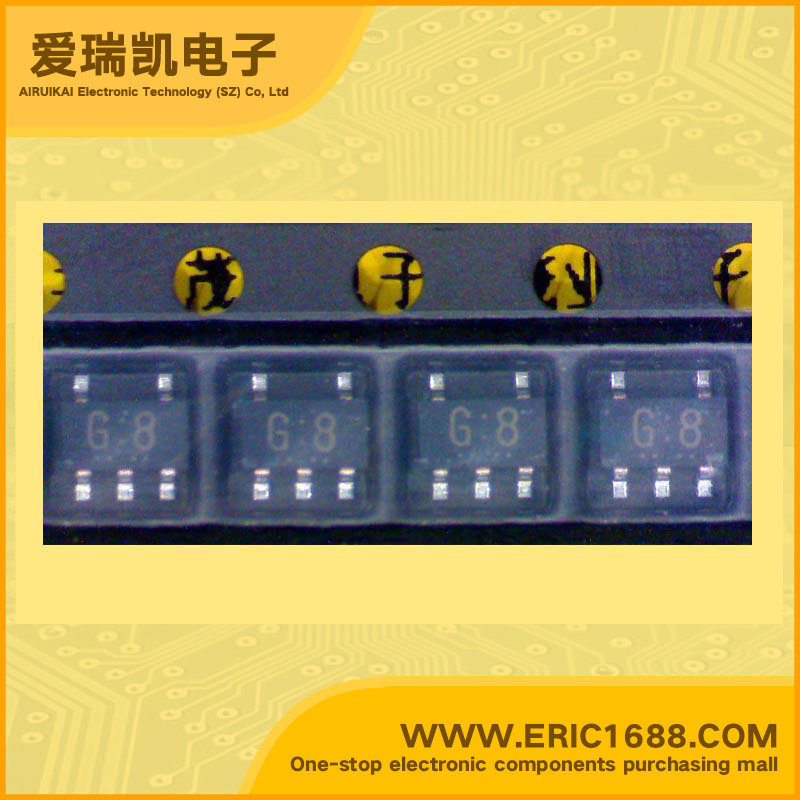

Integrated Circuit(IC) XOR gate TC7SET86F SOT-353/USV marking G8

Price (excluding freight):
Batches(PCS):
$0.090
≤99
$0.081
≤499
$0.068
≤999
$0.058
≤2999
$0.054
FCL

Hot selling goods

Product description
逻辑类型
Logic Type
异或门 XOR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
4.5V~5.5V
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.8v
高逻辑电平
Logic Level - High
2V
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
10ns @ 4.5V ~ 5.5V,50pF
Description & Applicationsexclusive or gate ;High speed : tpd=5.2 ns (typ.) at VCC = 5 V, CL = 15pF • Low power dissipation : ICC = 2μA (max) at Ta = 25°C • Compatible with TTL outputs. : VIL = 0.8V (max) VLH = 2.0V (min) • 5.5-V tolerant inputs. • Balanced propagation delays : tpLH ≈ tpHL
描述与应用异或门;高速:TPD =5.2 ns(典型值) 在VCC = 5 V,CL=15PF •低功耗:ICC=2μA(最大值)在大= 25°C •兼容TTL输出。 :VIL= 0.8V(最大值)       VLH=2.0V(分钟) •5.5-V宽容投入。 •平衡传输时延:TPLH≈TPHL
