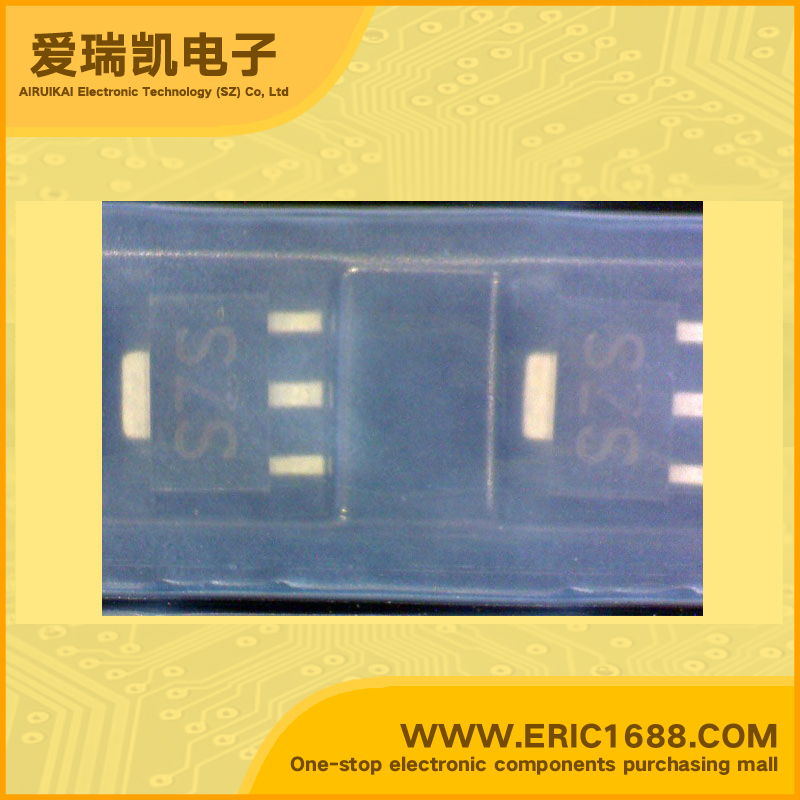

KSB1121-STF PNP transistors（BJT） -30V -600mA/- 0.6A 150MHz 140~280 -300mV/-0.3V SOT-89/SC-62 marking SZS high current driver
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −25V |
| 集电极连续输出电流IC Collector Current(IC) | −600mA/- 0.6A |
| 截止频率fT Transtion Frequency(fT) | 150MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 140~280 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -300mV/-0.3V |
| 耗散功率Pc PoWer Dissipation | 500mW/0.5W |
| Description & Applications | PNP epitaxial planar transistor High Current Driver Applications Large Current Capacity and Wide SOA Fast Switching Speed Complement to KSD1621 |
| 描述与应用 | PNP外延平面晶体管 高电流驱动器应用 大电流容量和宽SOA 开关速度快 补充型KSD1621 |
