CPH5809 complex FET MOSFET+schottky diode 30V 3A 1A 0.35V SOT-153/SOT23-5/CPH5 marking QK DC-DC converter/low on-resistance/high-speed switch/low drive voltage/short reverse recovery time/low forward voltage

Model：CPH5809

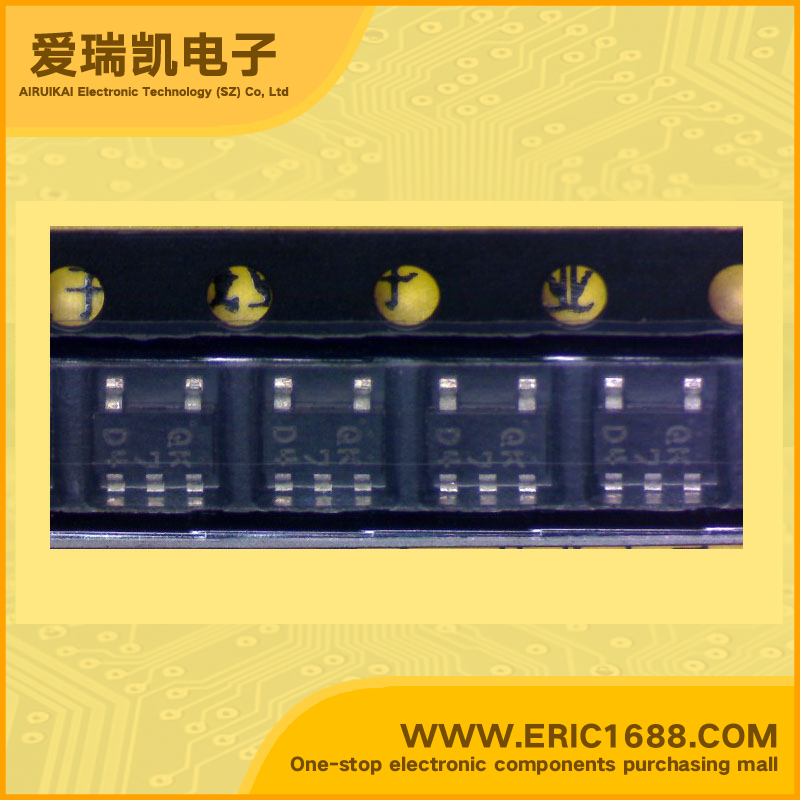

Mark / screen / code / typing：QK
Manufacturer：
Date Code：07NOPB 05+NOPB8800

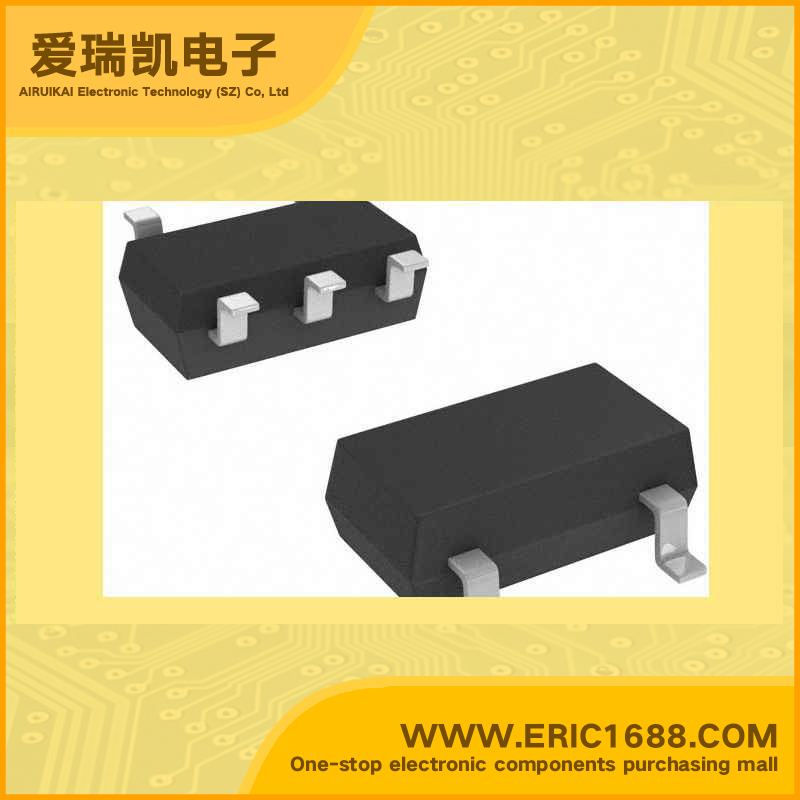

Package：SOT-153/SOT23-5/CPH5
Standard Package：3000
Min Order：10

Hot selling goods

最大源漏极电压Vds Drain-Source Voltage	N沟道 N-Channel
最大栅源极电压Vgs(±) Gate-Source Voltage	30V
最大漏极电流Id Drain Current	10V
源漏极导通电阻Rds Drain-Source On-State Resistance	3A
开启电压Vgs（th） Gate-Source Threshold Voltage	90mΩ@ VGS =4V, ID =1.5A
耗散功率Pd Power Dissipation	0.4~1.3V
Description & Applications	肖特基二极管SBD Schottky Barrier Diodes
描述与应用	30V
