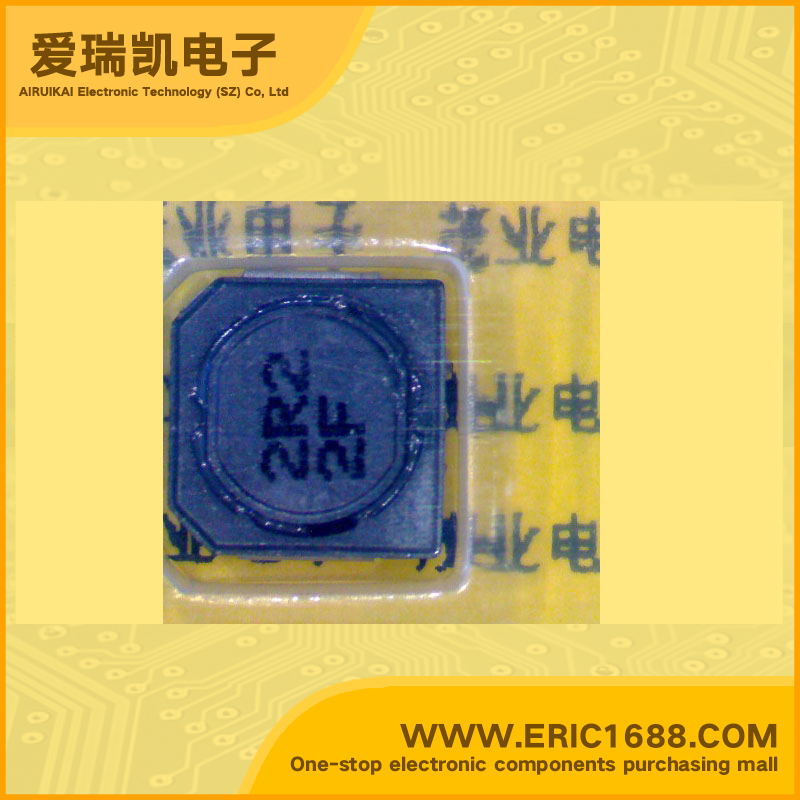

power conductor ELL6RH2R2M 2.2uH 6M-2R2
| Q值 Q Value | |
| 电感值 Inductance | 2.2uH |
| 误差 Tolerance | ± 20% |
| 额定电流 Current Rating | 2300mA |
| 饱和电流 Current - Saturation | |
| DC电阻DCR DC Resistance (DCR) | 0.03Ω/Ohm |
| Description & Applications | ■ Features ● Thin (height 2.5 mm, 3.0 mm) ● Higher reliability in mounting by separating the user terminal and internal connection. ● Large current capability ● RoHS compliant ■ Recommended Applications ● Video, Audio, Mobile communications, Electric battery driven equipment ● As a decoupling choke coil in DC-DC converte rs ■ Features ● Thin (height 2.5 mm, 3.0 mm) ● Higher reliability in mounting by separating the user terminal and internal connection. ● Large current capability ● RoHS compliant ■ Cautionary Notes Regarding Usage in DC-DC converters ● Maximum Dissipation of 1 W. ● Maximum case temperature of 105 °C (Ambient & self-heating temperature) |
| 描述与应用 | ■特点 ●薄（高度2.5毫米，3.0mm厚） ●更高的可靠性，通过分离用户终端的安装 和内部连接。 ●大电流能力 ●符合RoHS标准 ■推荐应用 ●视频，音频，移动通信，电气 电池驱动的设备 ●去耦扼流线圈在DC-DC转换器具RS中 ■特点 ●薄（高度2.5毫米，3.0mm厚） ●更高的可靠性，通过分离用户终端的安装 和内部连接。 ●大电流能力 ●符合RoHS标准 ■关于使用DC-DC转换器的注意事项 ●最大功耗为1 W ●最大外壳温度为105°C （环境和自动加热温度） |
