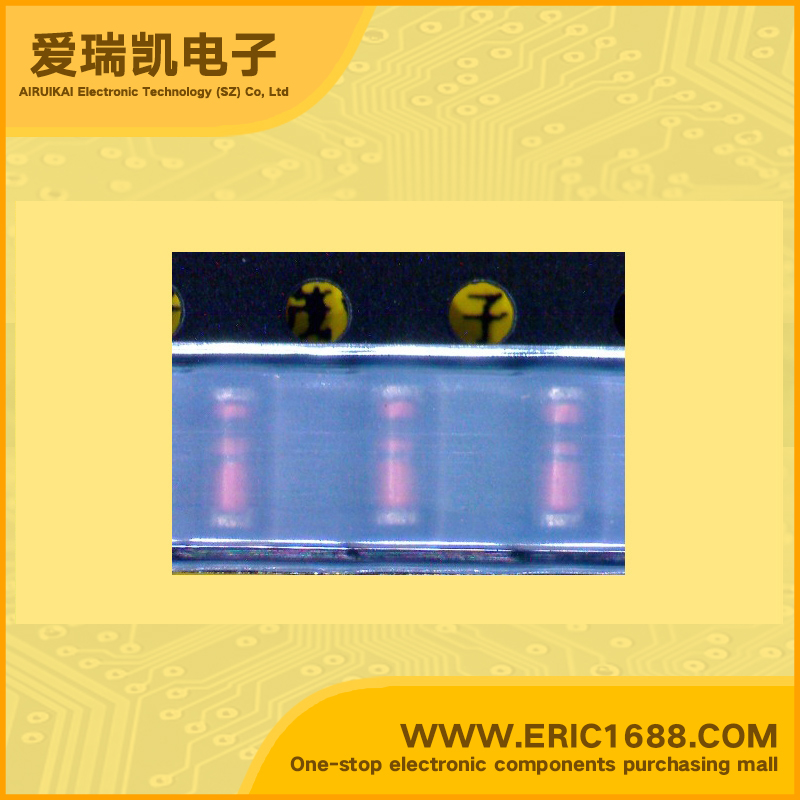

LL101C-GS08 SBD Schottky Barrier Diodes 40V 30mA 900mV/0.9V SOD80/LL34 low forward voltage fast switch
| 反向电压Vr Reverse Voltage | 40V |
| 平均整流电流Io AVerage Rectified Current | 30mA |
| 最大正向压降VF Forward Voltage(Vf) | 900mV/0.9V |
| 最大耗散功率Pd Power dissipation | 400MW/0.4W |
| Description & Applications | • The LL101 series is a metal-on-silicon Schottky barrier device which is protected by a PN junction guard ring. • The low forward voltage drop and fast switching make it ideal for protection of MOS devices, steering, biasing and coupling diodes for fast switching and low logic level applications. • Integrated protection ring against static discharge • Low capacitance • Low leakage current • HF-Detector • Protection circuit • Diode for low currents wits a low supply voltage • Small battery charger • Power supplies • DC / DC converter for notebooks |
| 描述与应用 | •LL101系列是一个金属硅肖特基势垒装置，PN结保护环。 •低正向压降和快速开关使其成为理想的MOS保护装置，转向，偏置和耦合二极管快速开关，低逻辑电平应用。 •集成的防止静电放电保护环 •低电容 •低漏电流 •HF探测器 •保护电路 •低电流斗智斗勇低电源电压的二极管 •小型电池充电器 •电源 •DC / DC转换器，用于笔记本电脑 |
