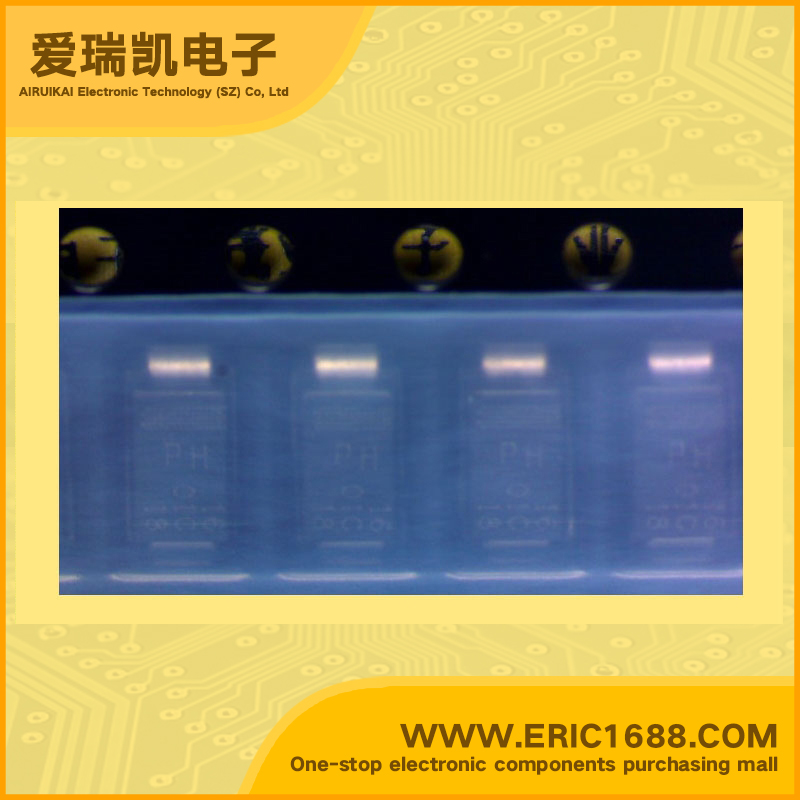

BZG01-C18 Zener Diodes 18V 1.5W DO-214AC/SMA-18V marking 18 high operating temperature/low leakage current/excellent stability
| 额定齐纳电压Vz(V)Zener Voltage 最小 min. | 16.8V |
| 平均 Typ. | 18V |
| 最大 max. | 19.1V |
| 误差 Tolerance | 5% |
| 最大齐纳阻抗Zz(Ω) Dynamic Impedance | 20Ω/ohm |
| 最大反向漏电流IR(uA) Reverse Current | 1uA |
| 最大耗散功率Pd Power dissipation | 1.5W |
| Description & Applications | • SMA voltage regulator diodes • Glass passivated • High maximum operating temperature • Ideal for surface mount automotive applications • Low leakage current • Excellent stability • UL 94V-O classified plastic package • Marking: cathode, date code, type name |
| 描述与应用 | •SMA稳压二极管 •玻璃钝化 •最高工作温度 •非常适于表面安装汽车应用 •低漏电流 •优良的稳定性 •UL94V-O分类塑料包装 •标记：阴极， |
