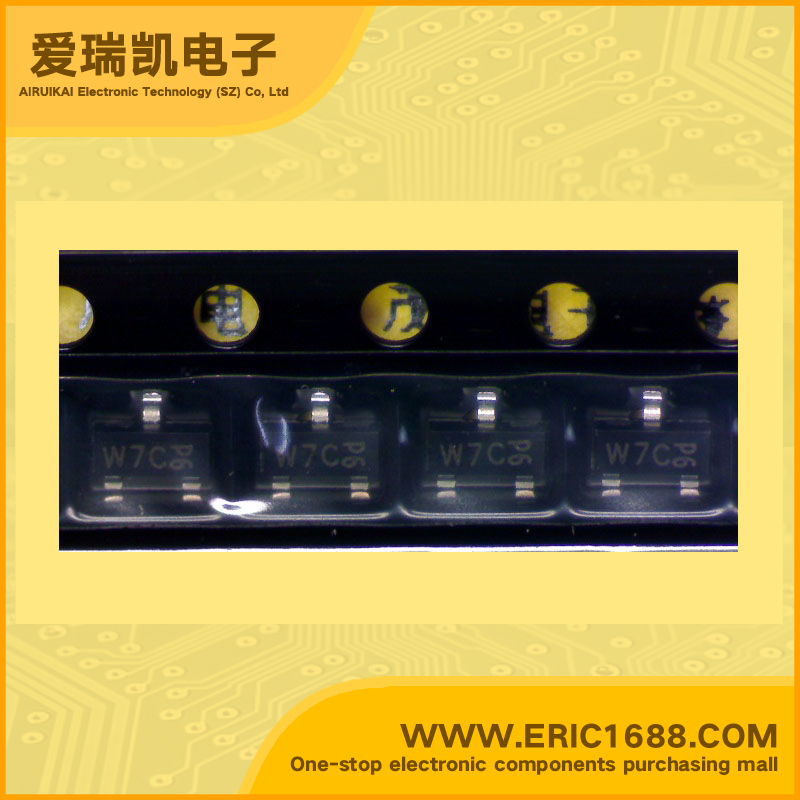

PESD12VS2UAT TVS/ESD 12V 5A SOT-23-12V marking W7C

Hot selling goods

Product description
极性
Polarization
单向 Unidirectional
反向关断电压/工作电压VRWM
Reverse Standoff Voltage
12V
反向击穿电压VBR
Breakdown Voltage
14.7V
峰值脉冲耗散功率PPPM
Peak Pulse Power Dissipation
180W
峰值脉冲电流IPPm
Peak Forward Surge Current
5A
额定耗散功率Pd
Power dissipation
Description & ApplicationsFEATURES • Double ESD protection diodes in SOT23 package • Unidirectional ESD protection of up to two lines • Common-cathode configuration • Max. peak pulse power: Ppp = 330 W at tp = 8/20 µs • Low clamping voltage: V(CL)R = 20 V at Ipp = 18 A • Ultra-low reverse leakage current: IRM < 700 nA • ESD protection > 30 kV • IEC 61000-4-2; level 4 (ESD) • IEC 61000-4-5 (surge); Ipp = 18 A at tp = 8/20 µs.
描述与应用特性 •双SOT23封装ESD保护二极管 •单向ESD保护最多两行 •通用阴极配置 •最大峰值脉冲功率:Ppp=330 W在tp= 8/20μs •低钳位电压:V(CL)R =20 V IPP =18Å •超低反向漏电流:IRM<700 nA的 •ESD保护>30千伏 •IEC61000-4-2第4级(ESD) •IEC61000-4-5(浪涌),IPP =18 A在tp= 8/20μs
