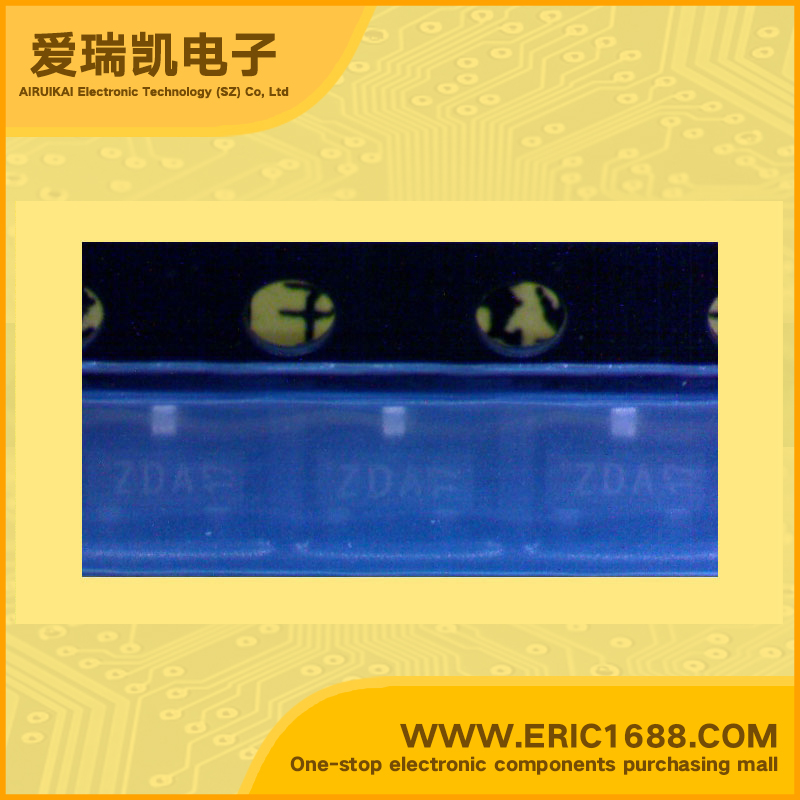

KN2907S PNP transistors（BJT） -60V -600mA/- 0.6A 200MHz 100~300 -1.6V SOT-23/SC-59 marking ZDA low leakage current
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | -60V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | −40V |
| 集电极连续输出电流IC Collector Current(IC) | −600mA/- 0.6A |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 直流电流增益hFE DC Current Gain(hFE) | 100~300 |
| 管压降VCE（sat） Collector-Emitter SaturationVoltage | -1.6V |
| 耗散功率Pc PoWer Dissipation | 350mW/0.35W |
| Description & Applications | PNP epitaxial planar transistor GENERAL PURPOSE APPLICATION.SWITCHING APPLICATION. FEATURES Low Leakage Current Low Saturation Voltage Complementary to the KN2222AS. |
| 描述与应用 | PNP外延平面晶体管 一般用途APPLICATION.SWITCHING应用。 特点 低漏电流 低饱和电压 互补KN2222AS。 |
