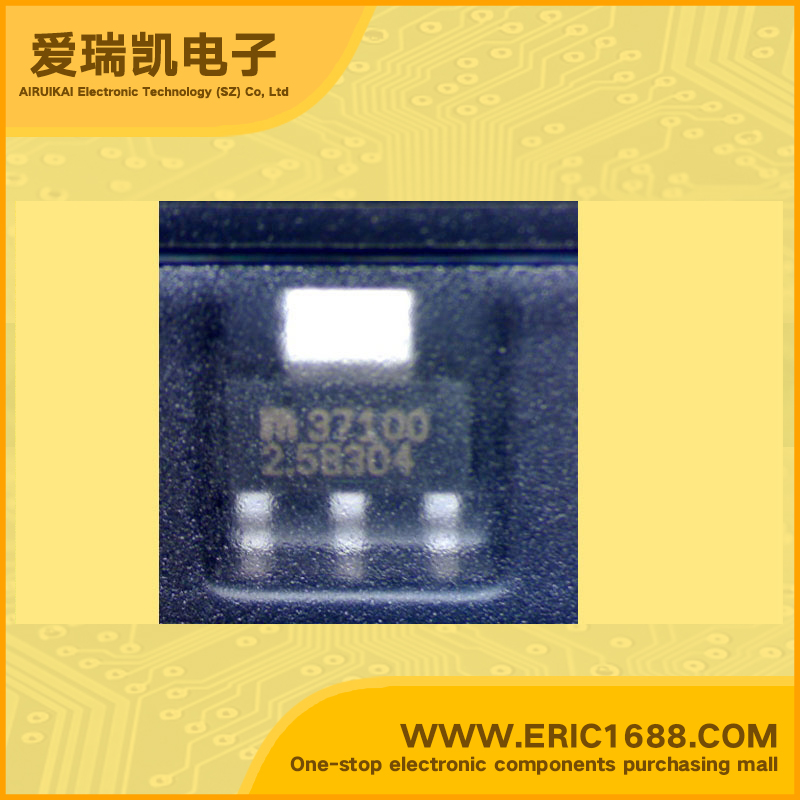

MIC37100-2.5BSTR LDO Voltage Regulator 2.5V 280mV/0.28V SOT-223 marking Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 2.25~6V |
| 输出电压VOUT Voltage - Output | 2.5V |
| 输出电流Io Current - Output | 1A |
| 最大压降VDO Voltage - Dropout | 280mV/0.28V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | 1A Low-Voltage µCap LDO ； • Fixed and adjustable output voltages to 1.24V • µCap Regulator, 10µF ceramic output capacitor stable • 280mV typical dropout at 1A – Ideal for 3.0V to 2.5V conversion – Ideal for 2.5V to 1.8V, 1.65V or 1.5V conversion • 1A minimum guaranteed output current • 1% initial accuracy • Low ground current • Current limiting and thermal shutdown • Reversed-leakage protection • Fast transient response • LDO linear regulator for PC add-in cards • PowerPC • High-efficiency linear power supplies • SMPS post regulator • Multimedia and PC processor supplies • Battery chargers • Low-voltage microcontrollers and digital logic |
| 描述与应用 | 1A低电压LDOμCap;•固定和可调输出电压1.24V •μCap稳压器，10uF陶瓷输出电容稳定 •在1A典型压差为280mV - 非常适于3.0V至2.5V的转换 - 非常适于2.5V到1.8V，1.65V或1.5V转换 •1A最低保证输出电流 •1％的初始精度 •低接地电流 •电流限制和热关断 •反转漏电保护 •快速瞬态响应 •LDO线性稳压器为PC附加卡 •PowerPC的 •高效率线性电源供应器 •SMPS后的调节器 •多媒体和PC处理器供应 •电池充电器 •低电压微控制器和数字逻辑 |
