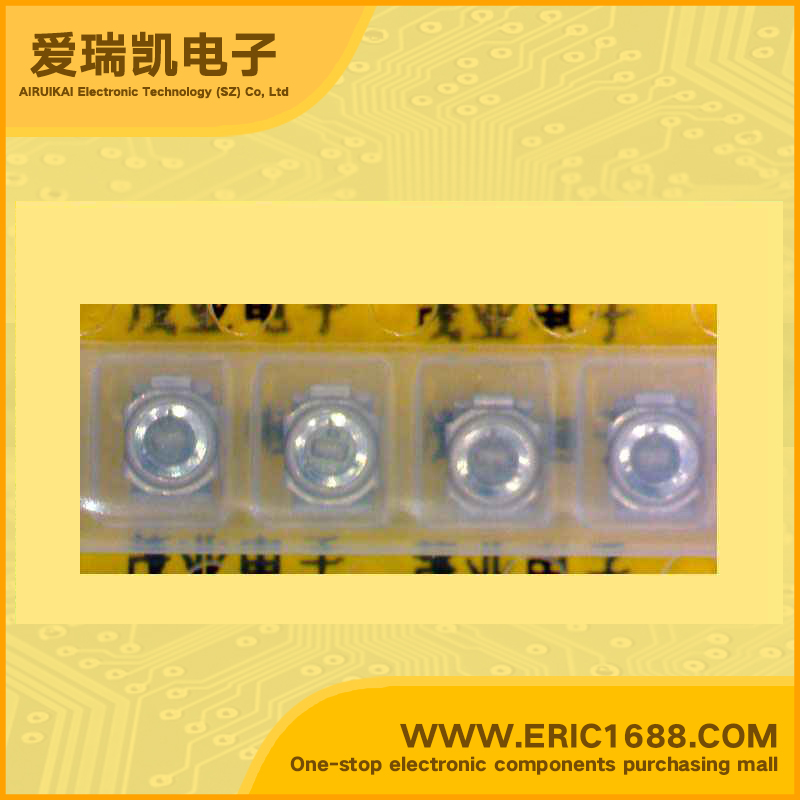

Trimmers/Variable Capacitor TZY2Z030A001R00 1.5-3.0pf 2X2-3P
| 电容范围 Capacitance Range | 1.5-3.0pf |
| 调节类型 Adjustment Type | 顶部调节 Top Adjustment |
| 额定电压 Voltage - Rated | 25V |
| Description & Applications | Features 1. Small and thin size with external dimensions of 2.5(W)x3.2(L)x1.25max.(H)mm 2. New shape of cover can improve the flux invasion compared with current products. 3. Improvement of the adhesion between rotor and stator leads to superior stability. 4. Unique construction with no plastic material provides superior soldering heat resistance to maintain excellent characteristic performance after reflow soldering. 5. Suitable for high frequency circuit due to high self resonant frequency (4.8GHz of TZY2Z010 at 1.0pF setting) Applications 1. Crystal oscillators 2. Crystal filters 3. Pagers 4. Cordless telephones 5. PHS 6. Hand radios 7. Cellular telephones 8. Watches 9. Remote keyless entry systems 10. W-LAN 11. Radar detectors 12. Compact radios 13. DVD 14. Burglarproof devices 15. Headphone stereos |
| 描述与应用 | 特点 1。小而薄，外形尺寸大小 2.5（W）×3.2（L）（H）毫米x1.25max。 2。新盖的形状可以提高光通量入侵 与目前的产品相比。 3。和转子之间的粘附性的改进 定子导致超强的稳定性。 4。建筑独特的无塑料材料 提供优异的耐焊接热 保持性能的稳定性 回流焊接后。 5。适用于高频电路，由于高 自谐振频率（4.8GHz的TZY2Z010在的 1.0PF设置） 应用 1。晶体振荡器2。水晶过滤器 3。寻呼机4。无绳电话 5。小灵通6。便携式无线电 7。蜂窝电话8。手表 9。遥控无钥匙进入系统 10。 W-LAN11。雷达探测器 12。紧凑型无线电13。 DVD 14。防盗装置15。立体声耳机 |
