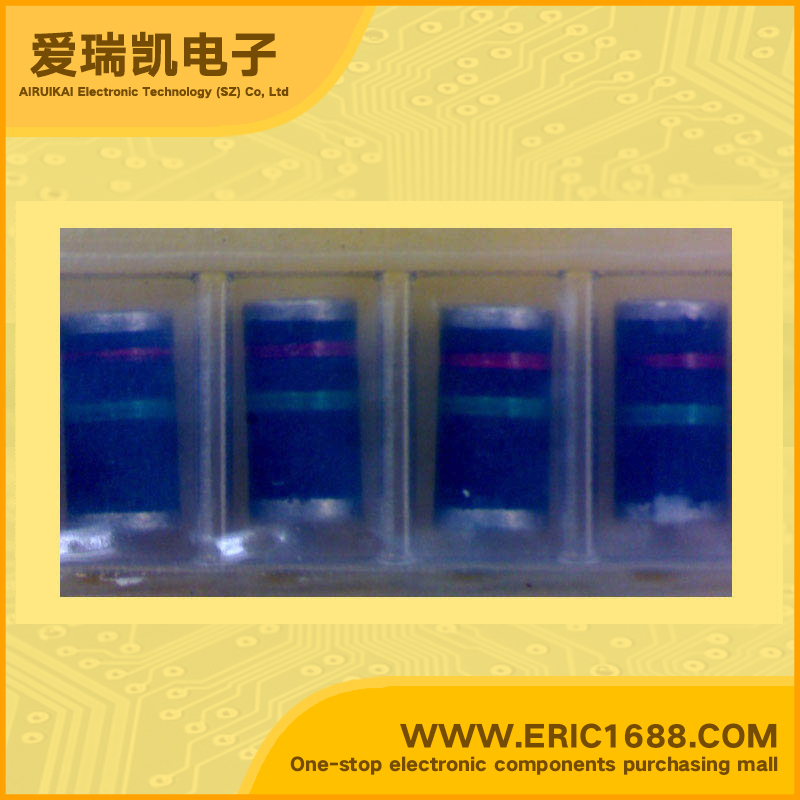

RGL41J rectifiers 1A 1.3V DO-213AB
| 反向电压Vr Reverse Voltage | 600V |
| 平均整流电流Io AverAge Rectified Current | 1A |
| 最大正向压降VF Forward Voltage(Vf) | 1.3V |
| 反向恢复时间Trr Reverse Recovery Time | 250nS |
| 最大耗散功率Pd Power dissipation | |
| Description & Applications | Surface Mount Glass Passivated Junction Fast Switching Rectifier • Superectifier structure for high reliability condition • Ideal for automated placement • Fast switching for high efficiency • Low leakage current • High forward surge capability • Meets environmental standard MIL-S-19500 • Meets MSL level 1, per J-STD-020, LF maximum peak of 250 °C • AEC-Q101 qualified • Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC |
| 描述与应用 | 表面贴装玻璃钝化结快速高效整流 •Superectifier结构，高可靠性的条件 •适合自动放置 •高效率的快速切换 •低漏电流 •高正向浪涌能力 •符合环保标准MIL-S-19500 •会见MSL每1，J-STD-020，LF最大峰值 250°C •通过AEC-Q101资格 •符合RoHS指令2002/95/EC和 根据WEEE 2002/96/EC |
