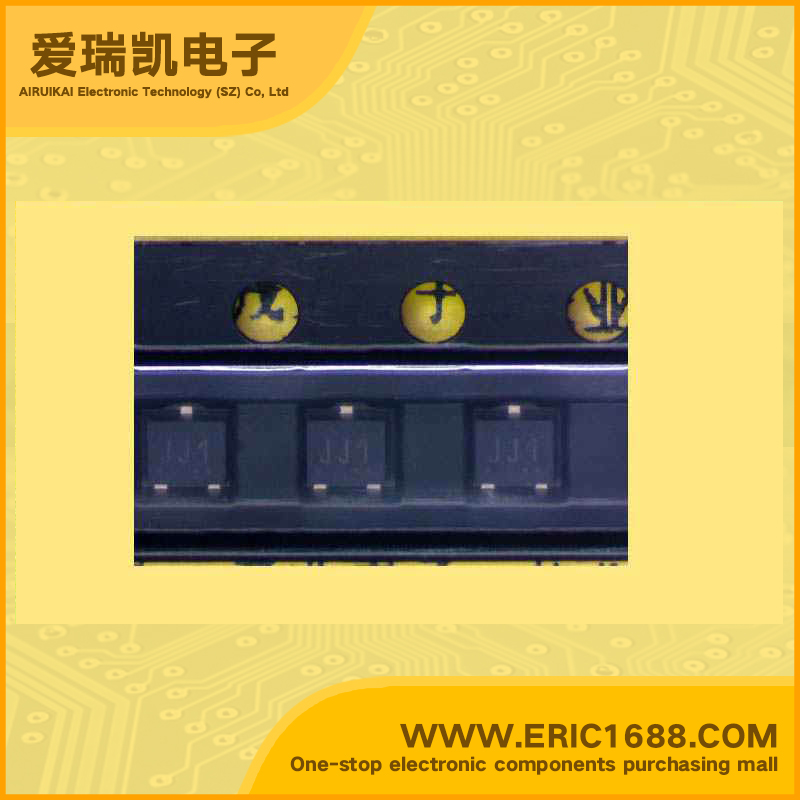

SSM3J108TU MOSFET P-Channel -20V -1.8A 0.125ohm SOT-323 marking JJ1 high-speed switch 1.8V drive low on-resistance
| 最大源漏极电压Vds Drain-Source Voltage | -20V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 8V |
| 最大漏极电流Id Drain Current | -1.8A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance | 0.125Ω @-800mA,-4V |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | -0.3V-1.0V |
| 耗散功率Pd Power Dissipation | 800mW/0.8W |
| Description & Applications | High Speed Switching Applications • 1.8V drive • Low on-resistance: Ron = 363mΩ (max) (@VGS = −1.8 V) Ron = 230mΩ (max) (@VGS = −2.5 V) Ron = 158mΩ (max) (@VGS = −4.0 V) |
| 描述与应用 | 高速开关应用 •1.8V驱动 •低导通电阻RON =363mΩ（最大）（@ VGS=-1.8 V） 罗恩=230mΩ（最大）（@ VGS= -2.5 V） RON =158mΩ（最大）（@ VGS=-4.0 V） |
