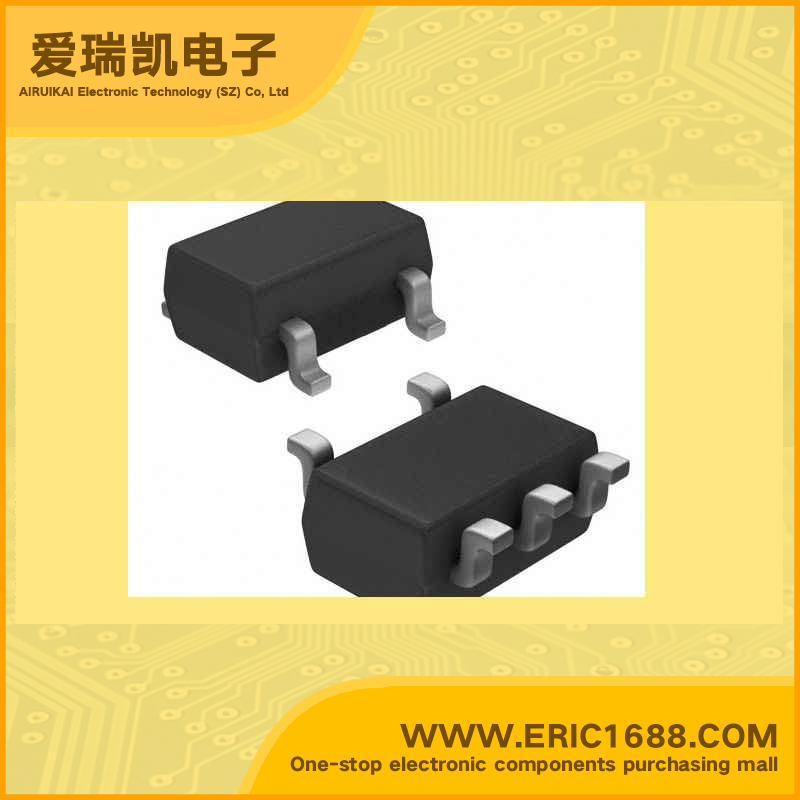

Integrated Circuit（IC） analog switch NLAST4501DFT2G SOT-353 marking A3
| 开关配置 Circuit | 单刀单掷 1*SPST |
| 导通电阻 On-State Resistance | 30Ω/Ohm |
| 电源电压 Voltage - Supply | 2 V ~ 5.5 V |
| Description & Applications | Single SPST Analog Switch The device is a bilateral switch suitable for switching either analog or digital signals, which may vary from zero to full supply voltage. The NLAST4501 is a low voltage, TTL (low threshold) compatible device, pin for pin compatible with the MAX4501. The Enable pin is compatible with standard TTL level outputs when supply voltage is nominal 5.0 V. It is also over−voltage tolerant, making it a very useful logic level translator. Provides Voltage translation for many different voltage levels 3.3 to 5.0 V, Enable pin may go as high as 5.5 V 1.8 to 3.3 V 1.8 to 2.5 V Improved version of MAX4501 (at any voltage between 2 and 5.5 V) |
| 描述与应用 | 单SPST模拟开关 该设备是一个双向开关适合用于切换模拟或数字信号，该 从零到满电源电压可能会有所不同。 的NLAST4501是一个低电压，TTL（低阈值）兼容 设备，针与MAX4501引脚兼容。 使能引脚兼容标准TTL电平输出 电源电压标称5.0 V.这也是过电压耐受， 使其成为一个非常有用的逻辑电平转换。 提供许多不同电压电平电压转换 3.3〜5.0 V，使引脚可以去高达5.5 V 1.8到3.3 V 1.8到2.5 V MAX4501的改进版本（在2和5.5 V之间的任何电压） |
