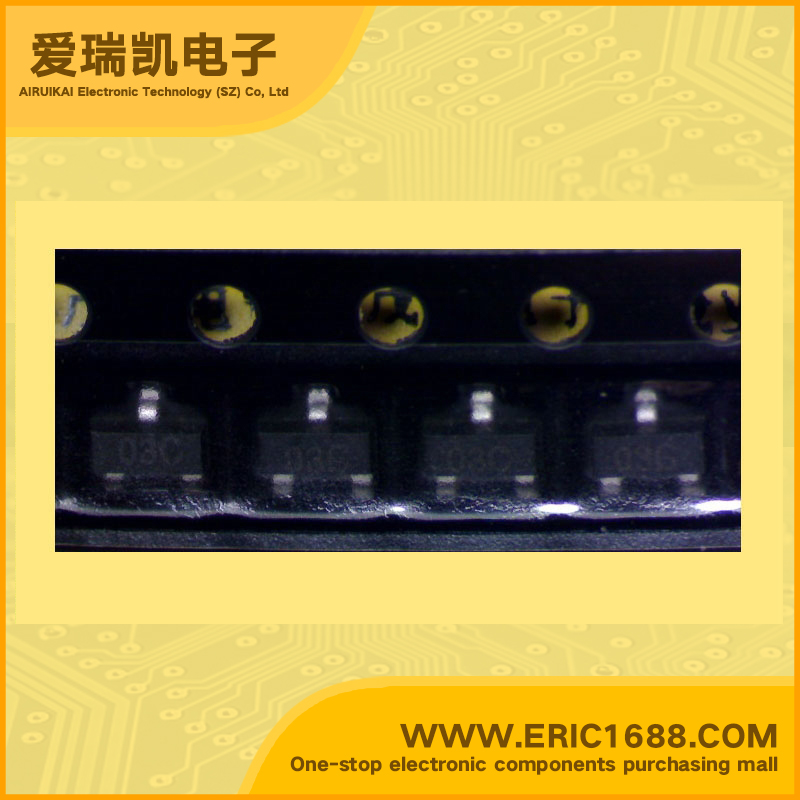

PSOT03C-LF-T7 TVS/ESD 3.3V 43A SOT-23-3.3V marking 03C
| 极性 Polarization | |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 3.3V |
| 反向击穿电压VBR Breakdown Voltage | 4.5V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 500W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 43A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | FEATURES • STANDARD CAPACITANCE TVS ARRAY • ESD Protection > 40 kilovolts • 500 Watts Peak Pulse Power per Line (tp = 8/20µs) • Low Clamping Voltage • Available in Multiple Voltage Types Ranging from 3V to 36V • Unidirectional & Bidirectional Configurations |
| 描述与应用 | 特性 •标准电容TVS阵列 •ESD保护>40千伏 •500瓦峰值脉冲功率线（TP =8/20μS） •低钳位电压 •多重从3V至36V电压类型 •单向及双向配置 |
