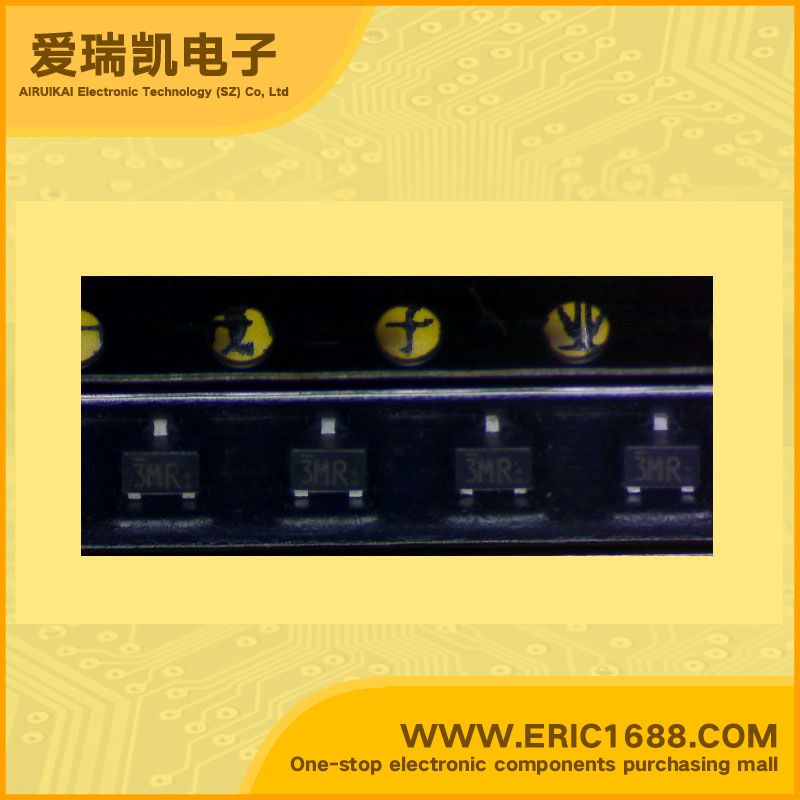

2SC4835GRL NPN Transistors(BJT) 15V 80mA 6Ghz 50~200 SOT-323/SC-70 marking 3MR UHF band low noise amplifier
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 10V |
| 集电极连续输出电流IC Collector Current(IC) | 80mA |
| 截止频率fT Transtion Frequency(fT) | 6Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 50~200 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Features •Silicon NPN epitaxial planar type •For UHF band low-noise amplification •Low noise figure NF. •High gain. •High transition frequency fT. •S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing. |
| 描述与应用 | 特点 •NPN硅外延平面型 •对于UHF频段低噪声放大 •低噪声系数NF。 •高增益。 •高转换频率fT。 •S-迷你型包装，使瘦身的设备和通过自动插入带包装盒包装。 |
