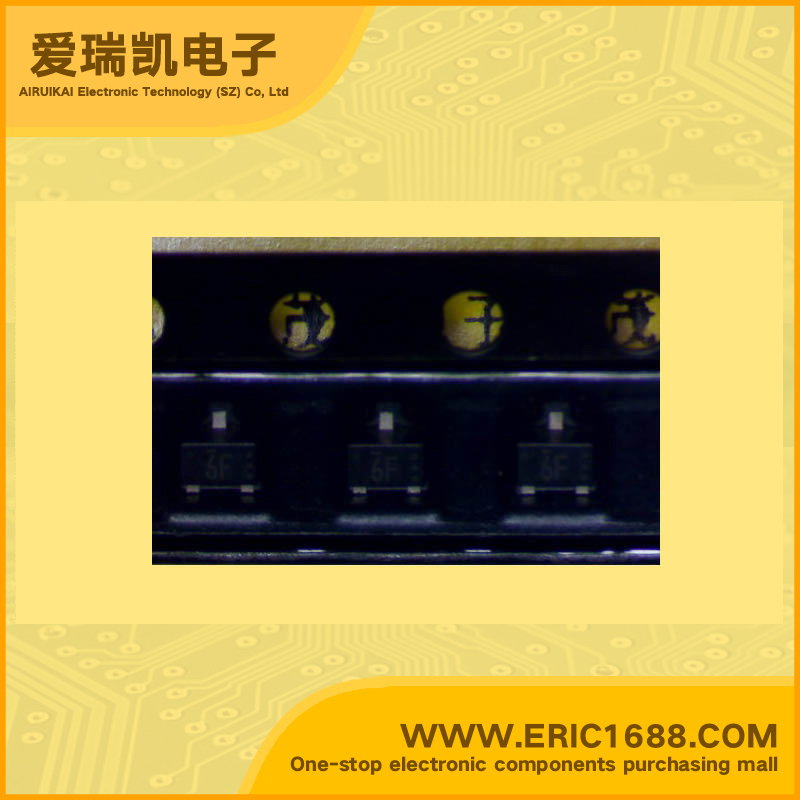

UNR5116JWL PNP Bipolar Digital Transistor (BRT) -50V -100mA/-0.1A 160~460 0.15W/150mW SOT-323/SC-70 marking 6F switch inverter interface driver circuit

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)-50V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)-50V
集电极连续输出电流IC Collector Current(IC)-100mA/-0.1A
基极输入电阻R1 Input Resistance(R1)4.7KΩ/Ohm
基极-发射极输入电阻R2 Base-Emitter Resistance(R2)
电阻比(R1/R2) Resistance Ratio
直流电流增益hFE DC Current Gain(hFE)160~460
截止频率fT Transtion Frequency(fT)150MHz
耗散功率Pc Power Dissipation0.15W/150mW
Description & Applications Features •Transistors with built-in Resistor •Silicon PNP epitaxial planer transistor •Costs can be reduced through downsizing of the equipment and reduction of the number of parts •S-Mini type package, allowing automatic insertion through the tape magazine packing
描述与应用特点 •内置电阻晶体管 •硅PNP外延刨床晶体管 •成本可以降低通过减员设备和减少部件的数量 •S-迷你型包装,允许通过自动插入磁带盒包装
