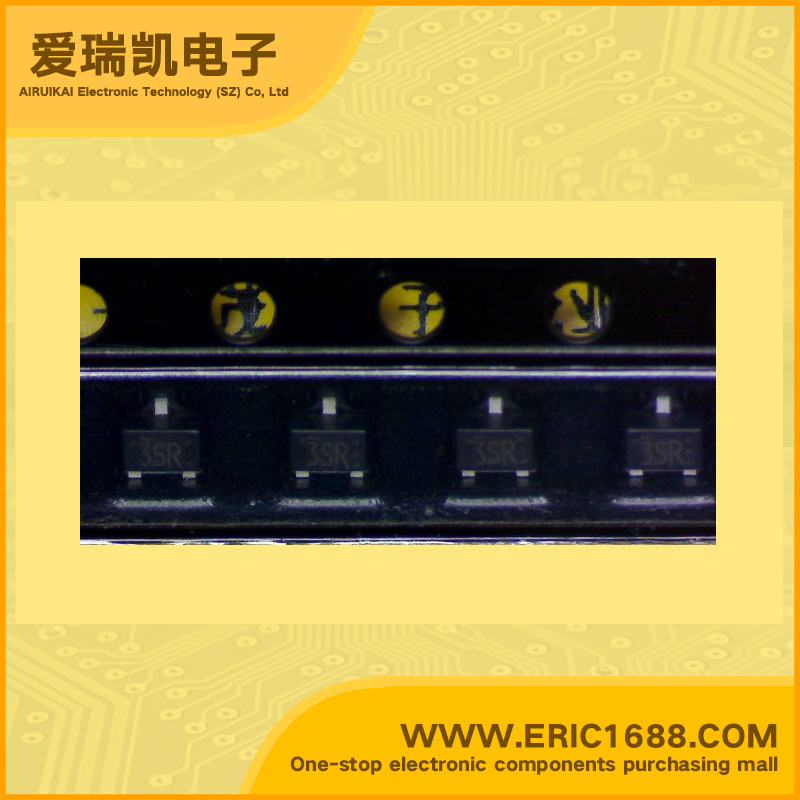

2SC4805GRL NPN Transistors(BJT) 15V 65mA 8.5Ghz 50~300 SOT-323/SC-70 marking 3SR
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 15V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 10V |
| 集电极连续输出电流IC Collector Current(IC) | 65mA |
| 截止频率fT Transtion Frequency(fT) | 8.5Ghz |
| 直流电流增益hFE DC Current Gain(hFE) | 50~300 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | |
| 耗散功率Pc Power Dissipation | 150mW/0.15W |
| Description & Applications | Features •Silicon NPN epitaxial planar type •For 2GHz band low-noise amplification •High transition frequency fT. •S-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing and the magazine packing |
| 描述与应用 | 特点 •NPN硅外延平面型•2GHz频段低噪声放大 •高转换频率fT。 •S-迷你型包装，使瘦身的设备和通过自动插入带包装盒包装 |
