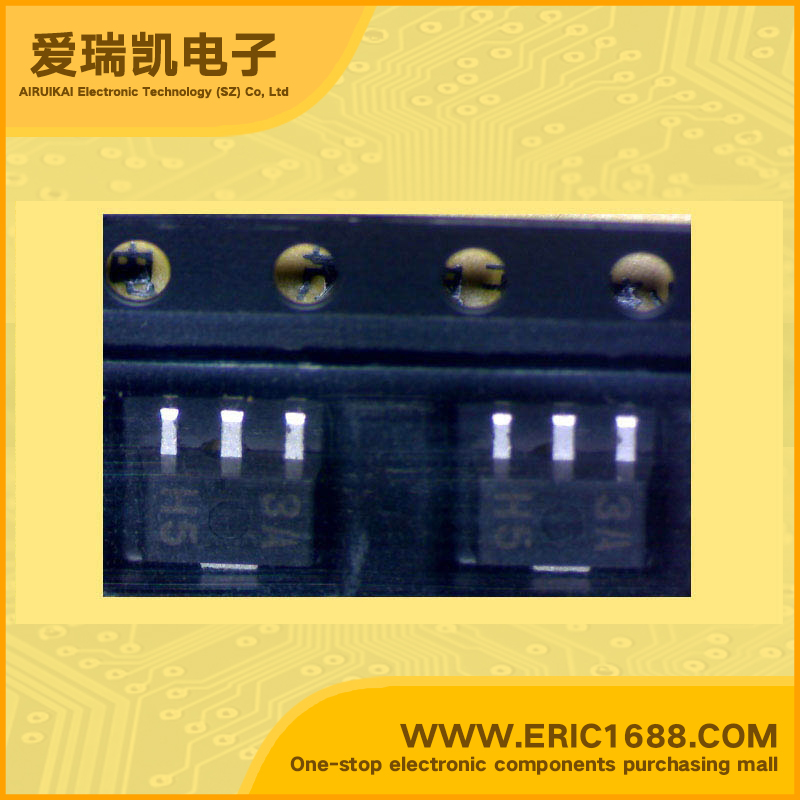

MM3123APRE/R LDO Voltage Regulator 3V 180mV/0.18V SOT-89 marking 3AH Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 10V |
| 输出电压VOUT Voltage - Output | 3V |
| 输出电流Io Current - Output | 80mA |
| 最大压降VDO Voltage - Dropout | 180mV/0.18V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | 250mA CMOS Regulator ;•Low current consumption 1µA typ. (no load) •Output voltage 2.0~6.0V (0.1V step) •Low input/output voltage difference 180mV typ. (VO=3.0V, IOUT=80mA) •Low output capacitor 0.1µF •Allowable loss 500mW |
| 描述与应用 | 250MA CMOS稳压器;•低电流消耗（典型）1uA的（无负载） •输出电压2.0〜6.0V（0.1V步） •低输入/输出电压差180mV（典型值）（VO= 3.0V，IOUT=80毫安） •低输出电容0.1μF •容许损耗500MW |
