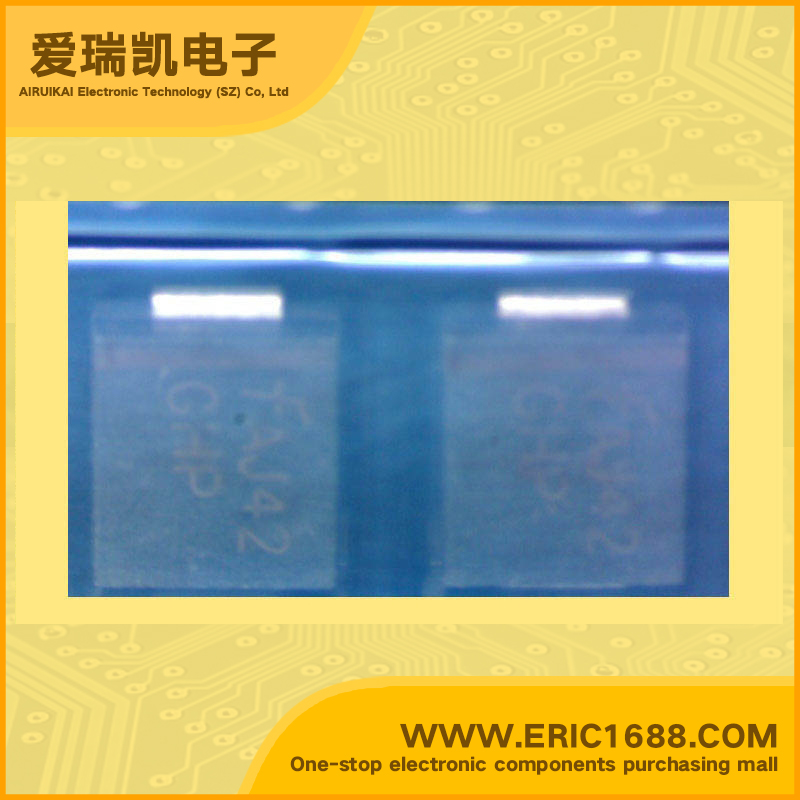

1.5SMCJ160A TVS/ESD 160V 5.8A DO-214AB/SMC-60V marking GHP
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 160V |
| 反向击穿电压VBR Breakdown Voltage | 192V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 1500W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 5.8A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR；Features • For surface mounted applications in order to optimize board space. • Low profile package • Built-in strain relief • Glass passivated junction • Excellent clamping capability • Low inductance • Fast response time: typically less than 1.0 ps from 0 volts to BV min • Typical IR less than 1µA above 10V • High temperature soldering : 250°C/10 seconds at terminals. • Plastic package has Underwriters Laboratory Flammability Classification 94V-O |
| 描述与应用 | 表面贴装瞬态电压抑制器;特性 •表面安装应用便于优化板面空间。 •低调包 •内置应变救济 •玻璃钝化结 •优秀的夹紧能力 •低电感 •快速响应时间:通常小于1.0 ps从0伏特到BV min •典型红外小于1µa高于10 v •高温钎焊:250°C / 10秒在终端。 •塑料包保险商实验室易燃性类别94V-O |
