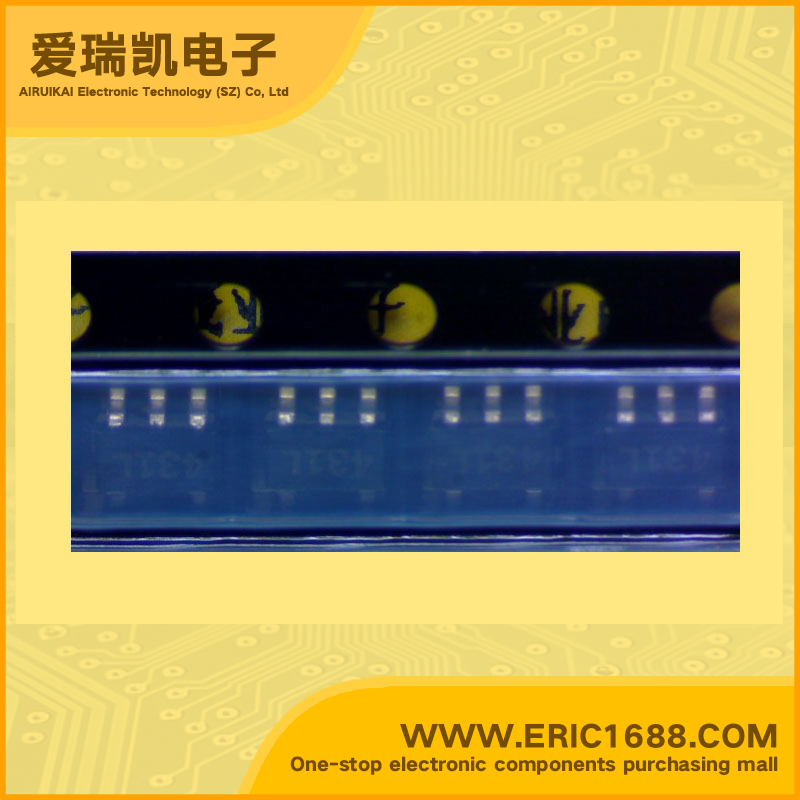

IRU431LCL5TR Voltage Reference Power Management IC 1.24V~15V SOT-153/SOT23-5 marking 431 Low VoltageAdjustable Precision shunt regulator
| 参考类型 Reference Type | |
| 输出电压Vo Voltage - Output | 1.24V~15V |
| 误差 Tolerance | ±1% |
| 温度系数 Temperature Coefficient | |
| 输入电压 Voltage - Input | 最高 15V |
| 阴极电流 Current - Cathode | 80uA |
| 输出电流IOUT Current - Output | 10mA |
| Description & Applications | FEATURES •LOW -VOLTAGE ADJUSTABLE PRECISION SHUNT REGULATOR •SOT-23 Packages •Voltage Reference Initial Accuracy(1% for IRU431L and 0.5% for IRU431AL) •Low Operating Cathode Current(80mA max) •Unconditionally Stable with only 1mF •Adjustable Output from 1.24V to 15V •0.25V Typical Output Impedance •Pin to Pin Compatible with TLV431 APPLICATIONS •Precision Voltage Reference •Linear Regulator Controller •Secondary Side Controller for the low voltage power supply applications |
| 描述与应用 | 特点 •低电压可调精密并联稳压器 •SOT-23封装 •参考电压初始精度（1％为IRU431L和0.5％IRU431AL） •低经营阴极电流（最大80毫安） •无条件稳定，只有1MF •从1.24V至15V的可调输出 •0.25V典型输出阻抗 •引脚到引脚兼容TLV431 应用 •精密电压参考 •线性稳压控制器 •低电压电源应用的二次侧控制器 |
