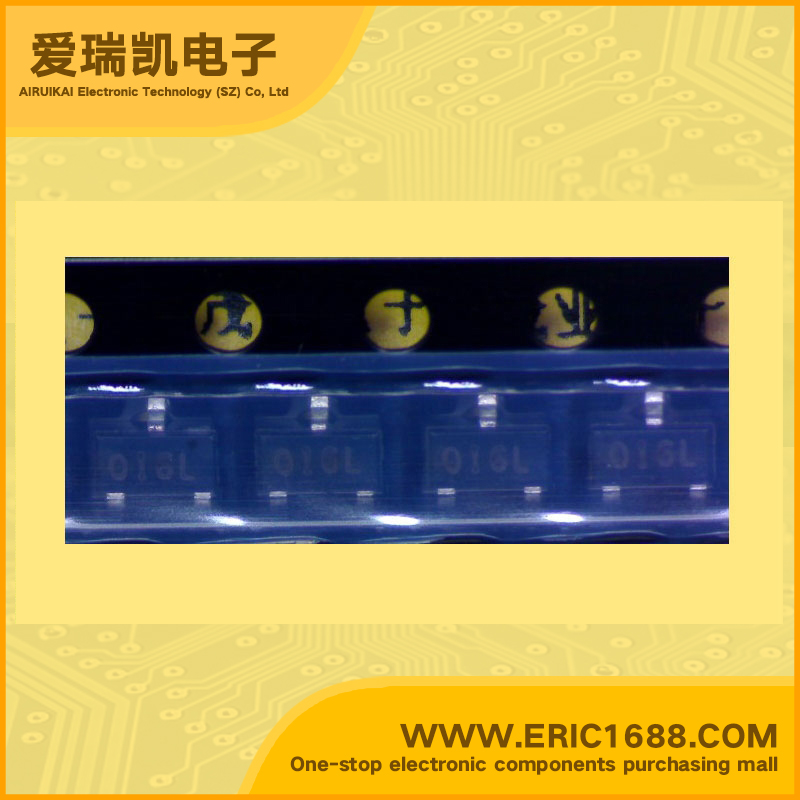

AF2301PWLA MOSFET P-Channel -20V -2.3A 0.095ohm SOT-23 marking 016L low on-resistance high-speed switch

Model：AF2301PWLA
Mark / screen / code / typing：016L
Manufacturer：
Date Code：06NOPB
Package：SOT-23/SC-59
Standard Package：3000
Min Order：10

Hot selling goods

Product description

最大源漏极电压Vds Drain-Source Voltage	-20V
最大栅源极电压Vgs(±) Gate-Source Voltage	8V
最大漏极电流Id Drain Current	-2.3A
源漏极导通电阻Rds Drain-Source On-State Resistance	0.095Ω @-2.8A,-4.5V
开启电压Vgs（th） Gate-Source Threshold Voltage	0.45V
耗散功率Pd Power Dissipation	1.25W
Description & Applications	Features Advanced trench process technology High density cell design for ultra low on-resistance Excellent thermal and electrical capabilities Compact and low profile SOT-23 package
描述与应用	先进沟道工艺技术高密度电池设计超低导通电阻优良的热性能和电气性能紧凑，低姿态SOT-23封装
