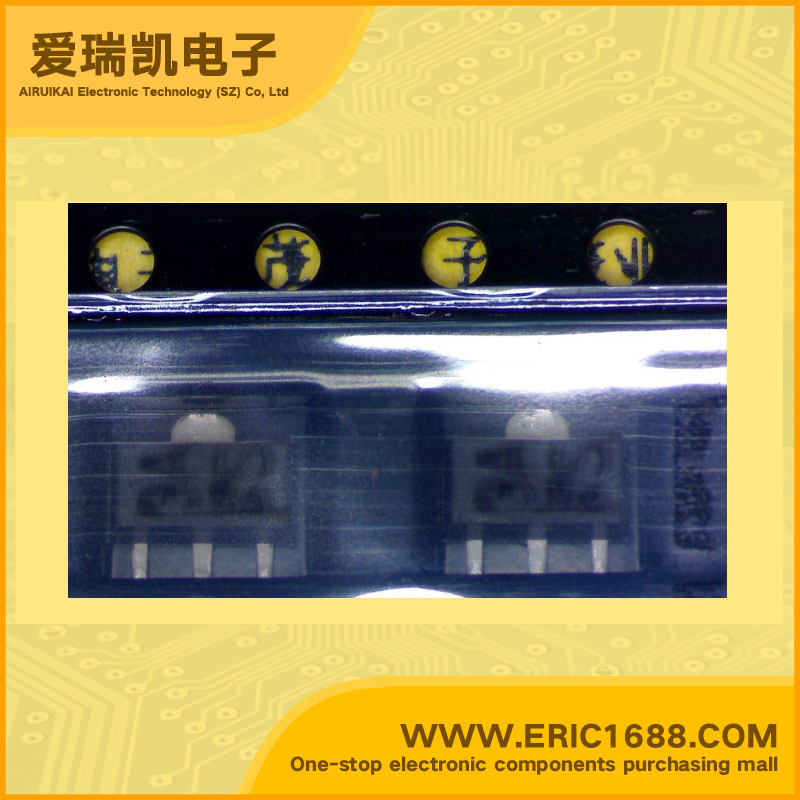

CM2830ASIM89TR LDO Voltage Regulator 3.3V 300mV/0.3V SOT-89 marking 3AS Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 7V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 300mA/0.3A |
| 最大压降VDO Voltage - Dropout | 300mV/0.3V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 400mW/0.4W |
| Description & Applications | 300mA CMOS LDO；•Very Low Dropout Voltage •Low Current Consumption: Typ. 30 µA, Max. 35 µA •High Accuracy Output Voltage: +/- 1.5% •Guaranteed 300mA Output •Input Range up to 7.0V • Thermal Shutdown •Current Limiting •Factory Pre-set Output Voltages •Short Circuit Current Fold-Back •Low Temperature Coefficient |
| 描述与应用 | 300mA的CMOS LDO;•非常低压差电压 •低电流消耗：典型。 30μA，最大。 35μA •高精度输出电压：+/ - 1.5％ •保证300mA输出 •高达7.0V的输入电压范围 •热关断 •电流限制 •工厂Pre-set输出电压 •短路电流折返 •低温度系数 |
