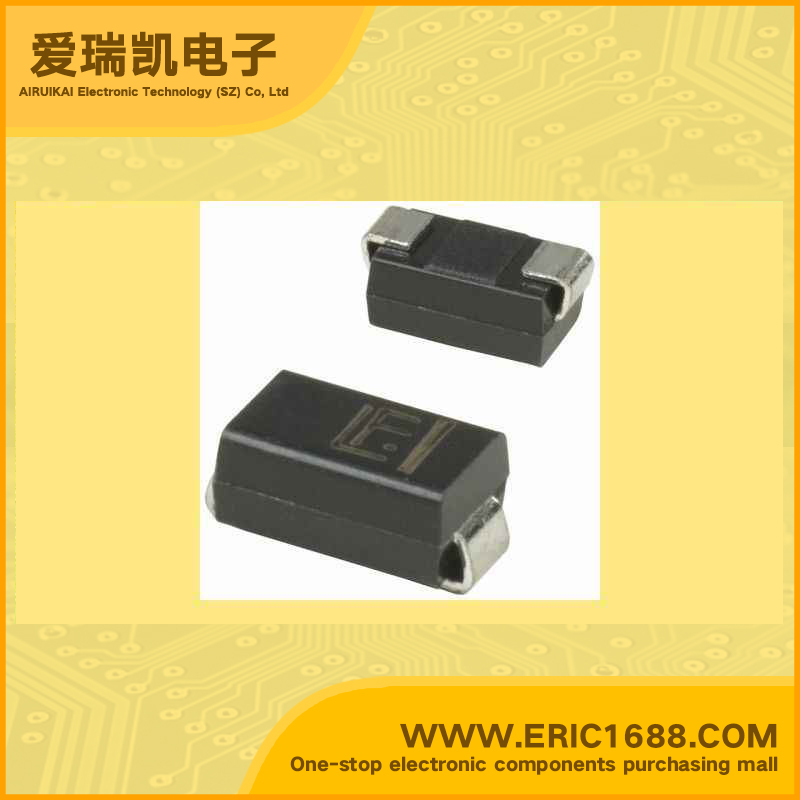

SMAJ350A TVS/ESD 350V 0.7A/700mA 3.3W DO-214AC/SMA-350V marking TG
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 350V |
| 反向击穿电压VBR Breakdown Voltage | 412.5V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 400W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 0.7A/700mA |
| 额定耗散功率Pd Power dissipation | 3.3W |
| Description & Applications | Features • Transient Voltage Suppression Diodes • Halogen-Free • RoHS compliant • For surface mounted applications to optimize board space • Low profile package • Built-in strain relief • Glass passivated junction • Low inductance • Excellent clamping capability • 400W Peak Pulsepower capability at 10 x 1000µs waveform, repetition rate (duty cycle): 0.01% • Fast response time: typically less than 1.0ps from 0 Volts to VBR min • Typical IR less than 1µA above 12V • High temperature soldering: 260°C/40 seconds at terminals • Typical maximum temperature coefficient ΔVBR = 0.1% x VBR@25°C x ΔT • Plastic package has Underwriters Laboratory Flammability 94V-O • Matte Tin Lead–free Plated |
| 描述与应用 | 特点 •瞬态电压抑制二极管 •无卤 •符合RoHS标准 •对于表面安装的应用程序，优化电路板空间 •薄型包装 •内置应变救灾 •玻璃钝化结 •低电感 •出色的钳位能力 •400W峰值的Pulsepower能力10×1000μs波形，重复率（占空比）：0.01％ •快速响应时间：通常小于1.0PS从0伏特至VBR分钟 •典型的IR小于1μA以上12V •高温焊接：260°C/40秒钟码头 •典型的最大温度系数ΔVBR的=0.1％所述VBR@ 25°C XΔT •塑料包装有保险商实验室可燃性94V-O •雾锡镀无铅 |
