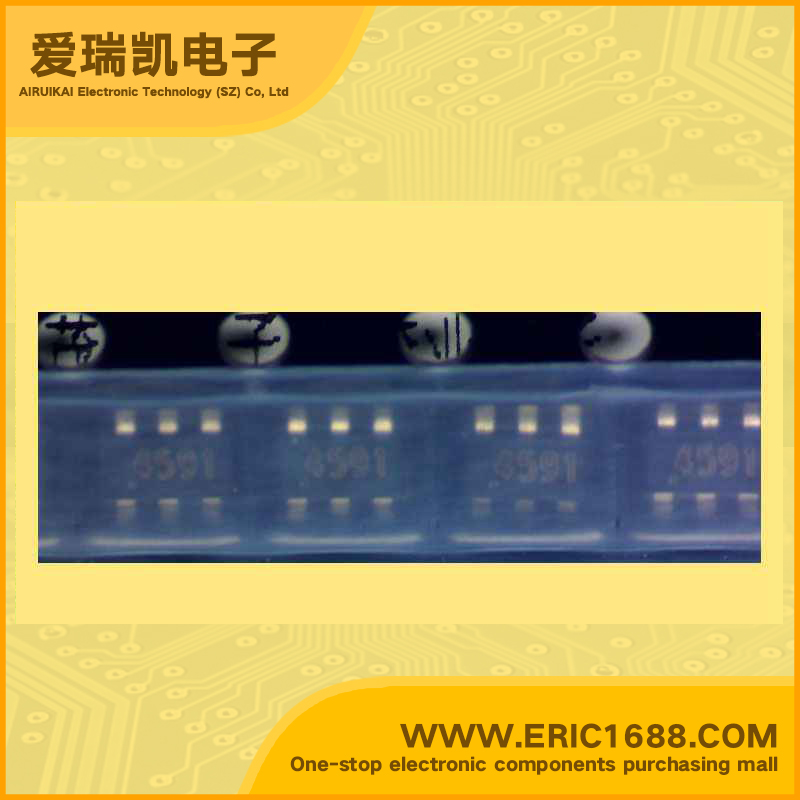

ZXTD4591E6TA NPN+PNP Complex Bipolar Transistor 80V/-80V 1A/-1A 100~300 SOT-163/SOT23-6 marking 4591 switch and digital circuit application

Hot selling goods

Product description
集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO)80V/-80V
集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO)60V/-60V
集电极连续输出电流IC Collector Current(IC)1A/-1A
截止频率fT Transtion Frequency(fT)150MHz
直流电流增益hFE DC Current Gain(hFE)100~300
管压降VCE(sat) Collector-Emitter Saturation Voltage250mV/-300mV
耗散功率Pc Power Dissipation1700mW
Description & ApplicationsFeatures • DUAL 60V NPN/PNP SILICON MEDIUM POWER TRANSISTORS • Low Equivalent On Resistance - NPN RCE(sat)210mΩ at 1A - PNP RCE(sat)355mΩ at -1A • Low Saturation Voltage • hFEcharacterised up to 2A • IC=1A Continuous Collector Current • SOT23-6 package APPLICATIONS • MOSFET gate driver • Low Power Motor Drive • Low Power DC-DC Converters
描述与应用特点 •DUAL60V NPN/ PNP硅中等功率晶体管 •低等效电阻 - NPN RCE(SAT)在1A210mΩ            - PNP RCE(SAT)355mΩ-1A •低饱和电压 •hFEcharacterised的高达2A •IC= 1A连续集电极电流 •SOT23-6封装 应用 •MOSFET栅极驱动器 •低功率马达驱动 •低功率DC-DC转换器
