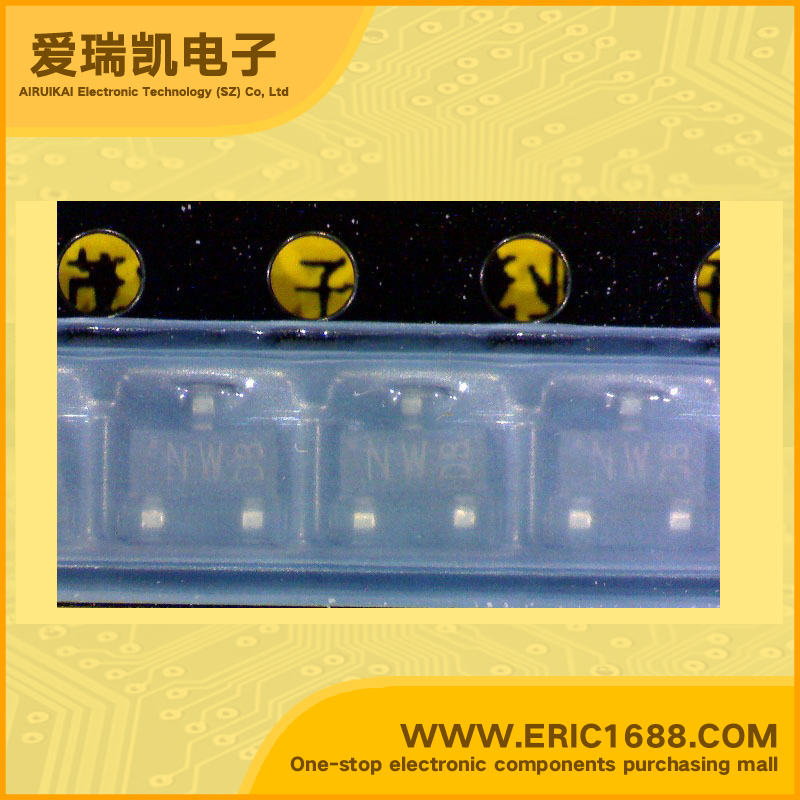

KRC231S NPN Bipolar Digital Transistor (BRT) 30V 600mA/0.6A 2.2k SOT-23/SC-59 marking NW switch radio muting circuit interface circuit driver circuit
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 30V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 15V |
| 集电极连续输出电流IC Collector Current(IC) | 600mA/0.6A |
| 基极输入电阻R1 Input Resistance(R1) | 2.2KΩ/Ohm |
| 基极-发射极输入电阻R2 Base-Emitter Resistance(R2) | |
| 电阻比(R1/R2) Resistance Ratio | |
| 直流电流增益hFE DC Current Gain(hFE) | 200-800 |
| 截止频率fT Transtion Frequency(fT) | 200MHz |
| 耗散功率Pc Power Dissipation | 0.2W/200mW |
| Description & Applications | FEATURES SWITCHING APPLICATION. AUDIO MUTING APPLICATION INTERFACE CIRCUIT DRIVER CIRCUIT APPLICATION. With Built-in Bias Resistors. Simplify Circuit Design. Reduce a Quantity of Parts and Manufacturing Process. |
| 描述与应用 | 特性 开关中的应用。 音频静音电路应用 接口电路 驱动器电路中的应用。 内置偏置电阻器。 简化电路设计。 减少了部件数量和制造工艺。 |
