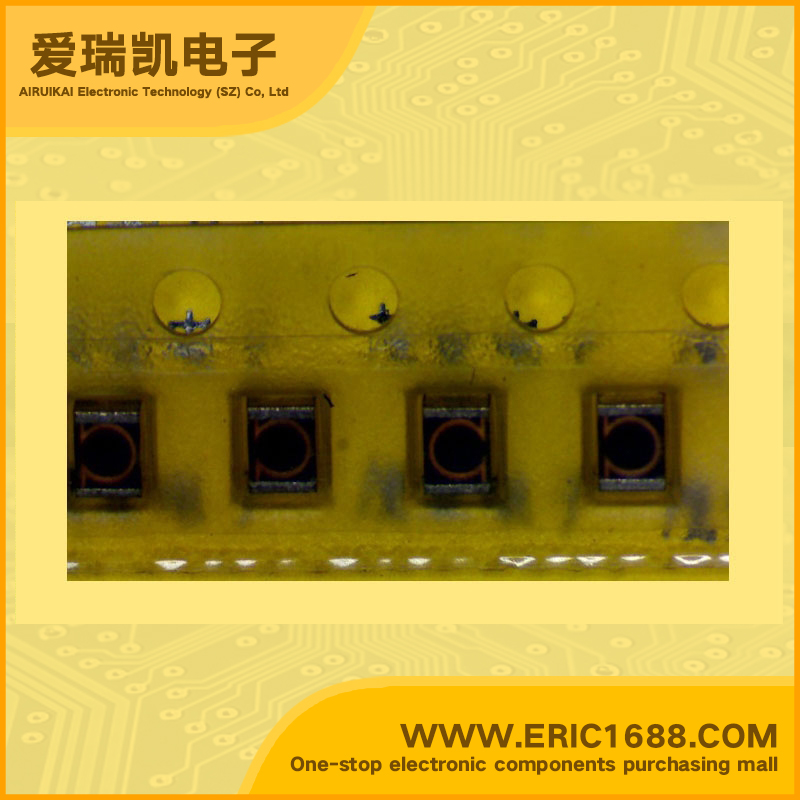

low power inductor L08052R7CEWTR 2.7nH 0805-2N7
| 电感值 Inductance | 2.7nH |
| 误差 Tolerance | ±0.2nH |
| 额定电流 Current Rating | 1000mA |
| 饱和电流 Current - Saturation | |
| 不同频率时的Q值 Q @ Frequency | 80 @ 1.7GHZ |
| 自振谐频率SRF Frequency - Self Resonant | 10GHz |
| DC电阻DCR DC Resistance (DCR) | 0.08Ω/Ohm |
| 屏蔽 Shielding | 无屏蔽 Unshielded |
| Description & Applications | SMD High-Q RF Inductor FEATURES • High Q • RF Power Capability • High SRF • Low DC Resistance • Ultra-Tight Tolerance on Inductance • Standard 0603 and 0805 Chip Size • Low Profile • Rugged Construction • Taped and Reeled APPLICATIONS • Mobile Communications • Satellite TV Receivers • GPS • Vehicle Locations Systems • Filters • Matching Networks |
| 描述与应用 | SMD高Q射频电感 特点 •高Q •射频功率能力 •高SRF •低直流电阻 •超紧公差电感 •标准的0603和0805芯片尺寸 •薄型 •结构坚固 •录音和摇摇晃晃 应用 •移动通信 •卫星电视接收器 •GPS •车辆定位系统 •过滤器 •匹配网络 |
