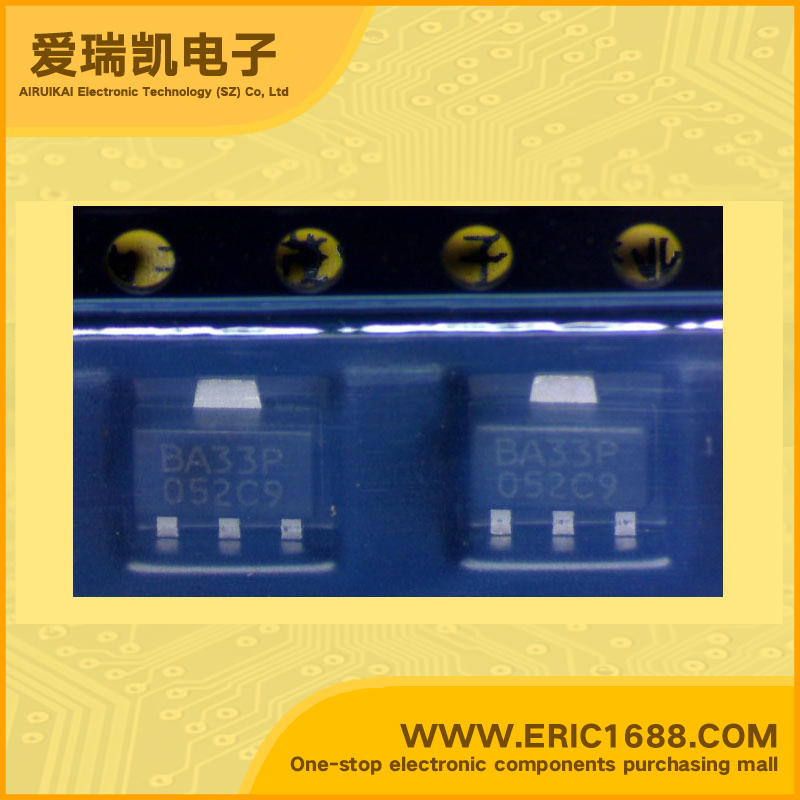

AIC1722A-33PXT LDO Voltage Regulator 3.3V 540mV/0.54V SOT-89 marking BA33P Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 5V |
| 输出电压VOUT Voltage - Output | 3.3V |
| 输出电流Io Current - Output | 100mA/0.1A |
| 最大压降VDO Voltage - Dropout | 540mV/0.54V |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 无 No |
| 最大耗散功率Pd Power dissipation | 500mW/0.5W |
| Description & Applications | 300mA Low Dropout Linear Regulator ;•Low Dropout Voltage of 130mV at 30mA •Output Current (5V Output Version). •Guaranteed 100mA Output Current. •Internal P-MOSFET Draws no Base Current. •Low Ground Current. •Output Voltage of 3.0V/ 3.3V/ 3.6V/ 4.4V/ 5.0V Available. •Input Voltage Range up to 14V. •Needs only 1µF for Stability. •Audio/Video System •Wireless Communication Systems. •Battery Powered Systems. •Toys. |
| 描述与应用 | 300mA的低压差线性稳压器;•在30mA130mV的低压差 •输出电流（5V输出版本）。 •保证100mA输出电流。 •内部P-MOSFET绘制没有基极电流。 •低接地电流。 •输出电3.0V/3.3V /3.6V/4.4V/5.0V可用。 •输入电压范围高达14V。 •只需要1μF的稳定性。 •音频/视频系统 •无线通信系统。 •电池供电系统。 •玩具。 |
