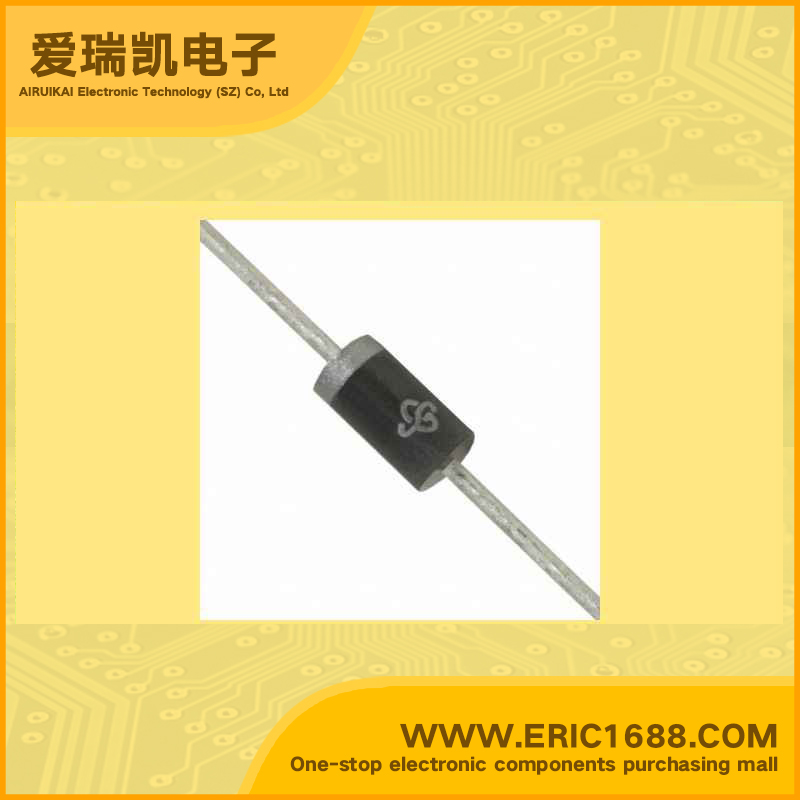

SA15A-E3/54 TVS/ESD 15V 20.5A 3W DO-204AC marking
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 15V |
| 反向击穿电压VBR Breakdown Voltage | 17.6V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 500W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 20.5A |
| 额定耗散功率Pd Power dissipation | 3W |
| Description & Applications | FEATURES • Vishay General Semiconductor • Transient Voltage Suppressors • Glass passivated chip junction • Available in uni-directional and bi-directional • 500 W peak pulse power capability with a10/1000 µs waveform, repetitive rate (duty cycle): 0.01 % • Excellent clamping capability • Very fast response time • Low incremental surge resistance • Solder dip 260 °C, 40 s • Component in accordance to RoHS 2002/95/EC and WEEE 2002/96/EC |
| 描述与应用 | 特点 •威世通用半导体瞬态电压抑制器 •玻璃钝化芯片结 •提供单向和双向500瓦峰值脉冲功率能力a10/1000μs波形，重复率（占空比）：0.01％ •出色的钳位能力 •非常快的响应时间 •低增量浪涌电阻 •浸焊260°C，40秒 •组件按照RoHS 2002/95/EC和WEEE 2002/96/EC 电信。 |
