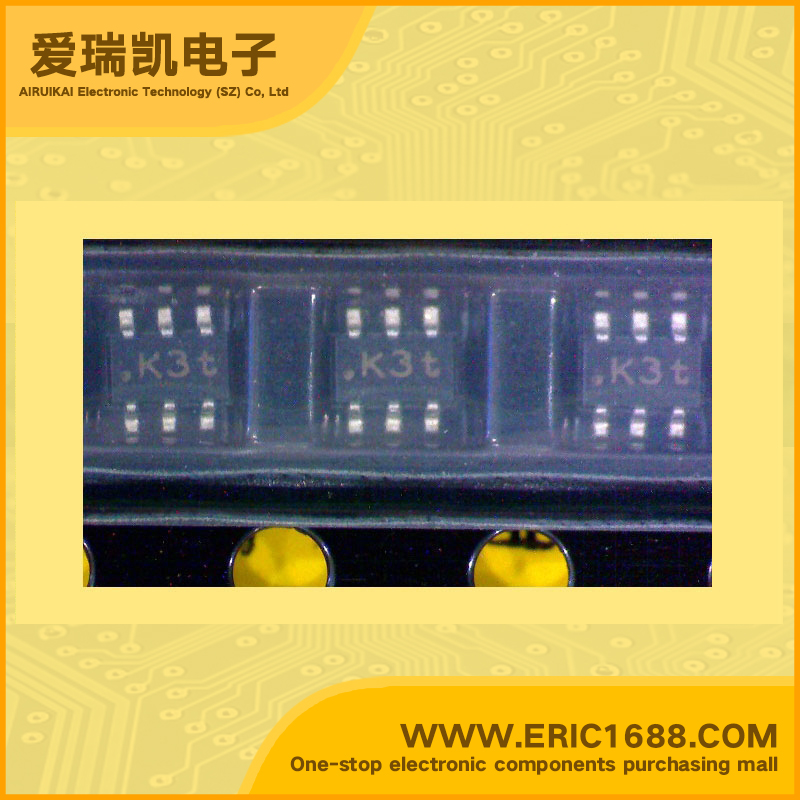

PESD3V3L5UY TVS/ESD 3.3V 2.5A SOT-363 marking K3t
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 3.3V |
| 反向击穿电压VBR Breakdown Voltage | 5.3V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 25W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 2.5A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | FEATURES • Low capacitance 5-fold ESD protection diode arrays in SOT363 package • Uni-directional ESD protection of up to five lines • Bi-directional ESD protection of up to four lines • Low diode capacitance • Maximum peak pulse power: Ppp = 25 W at tp = 8/20 µs • Low clamping voltage: VCL(R) = 12 V at Ipp = 2.5 A • Ultra low leakage current: IRM = 8 nA at VRWM = 5 V • ESD protection > 20 kV • IEC 61000-4-2; level 4 (ESD) • IEC 61000-4-5 (surge); Ipp = 2.5 A at Tp = 8/20 µs. |
| 描述与应用 | 特性 •5倍低电容ESD保护二极管阵列SOT363封装 •单向ESD保护高达五线 •双向ESD保护的四线 •低电容二极管 •最大峰值脉冲功率：Ppp=25 W@tp= 8/20μs •低钳位电压：VCL（R）在IPP= 12 V=2.5 A •超低漏电流：IRM=8 NA VRWM= 5 V •ESD保护>20千伏 •IEC61000-4-2第4级（ESD） •IEC61000-4-5（浪涌），Ipp=2.5 A TP= 8/20μs |
