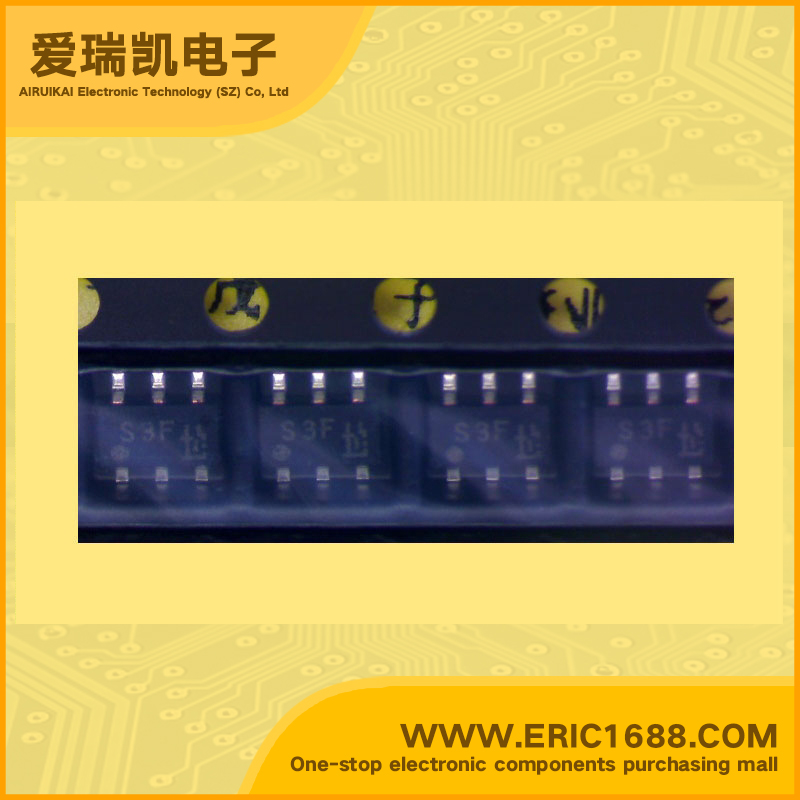

TPC6106 MOSFET P-Channel -40V -3.9A 75mohm SOT-163 marking S3F portable equipment application low leakage current low on-resistance
| 最大源漏极电压Vds Drain-Source Voltage | -40V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 20V |
| 最大漏极电流Id Drain Current | -3.9A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance | 75mΩ@ VGS = -10V, ID = -1.9A |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | -0.85~-2.0V |
| 耗散功率Pd Power Dissipation | 2.2W |
| Description & Applications | TOSHIBA Field Effect Transistor Silicon P Channel MOS Type (U-MOS II) Notebook PC Applications Portable Equipment Applications • Small footprint due to small and thin package • Low drain-source ON resistance: RDS (ON) = 58 mΩ (typ.) • High forward transfer admittance: |Yfs| = 5.5 S (typ.) • Low leakage current: IDSS = −10 μA (max) (VDS = −40 V) • Enhancement model: Vth = −0.8 to −2.0 V (VDS = −10 V, ID = −1 mA) |
| 描述与应用 | 东芝场效应晶体管硅P沟道MOS类型（U-MOS II） 笔记本电脑应用 便携式设备的应用 •由于占地面积小，小而薄的包装 •低漏源导通电阻RDS（ON）=58mΩ（典型值） •高正向转移导纳：| YFS|= 5.5 S（典型值） •低漏电流IDSS= -10μA（最大）（VDS=-40 V） •增强型号：Vth= -0.8到-2.0 V （VDS= -10 V，ID=-1毫安） |
