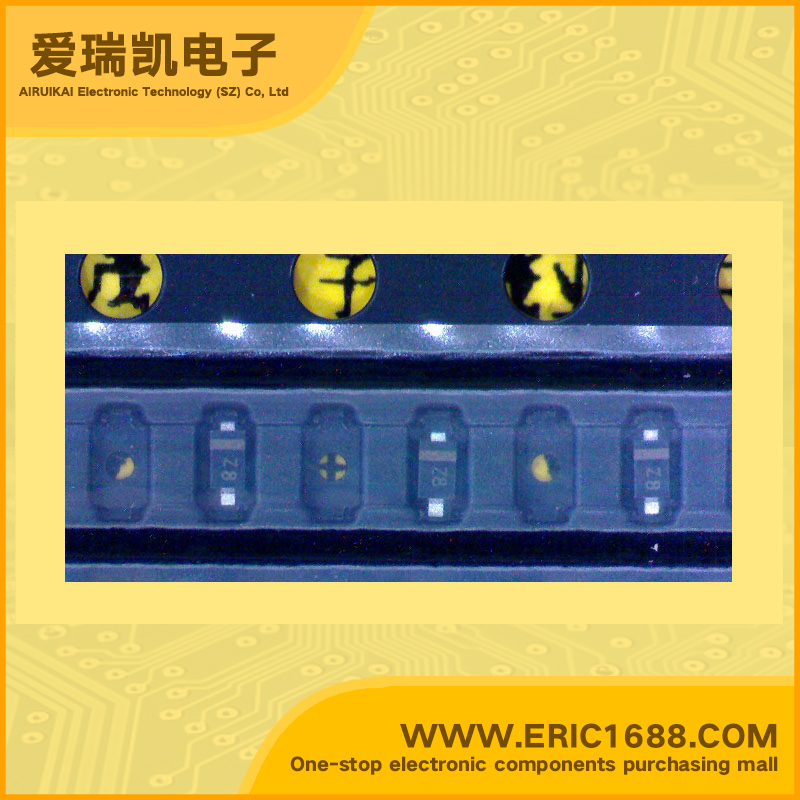

PESD5V0L1UB TVS/ESD 5V 3.5A SOD-523/SC-79/0603-5V marking Z8
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 5V |
| 反向击穿电压VBR Breakdown Voltage | 6.4V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 42W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 3.5A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | Features •Low capacitance unidirectional ESD protection diodes •ESD protection up to 26 kV •Low diode capacitance: Cd = 25 pF •IEC 61000-4-2; level 4 (ESD) •Low clamping voltage: VCL = 12 V •AEC-Q101 qualified •Very low leakage current: IRM = 10 nA |
| 描述与应用 | 特性 •低电容单向ESD保护二极管 •高达26 kVESD保护 •低电容二极管：Cd=25 PF •IEC61000-4-2第4级（ESD） •低钳位电压：VCL= 12 V •AEC-Q101资格 •极低的漏电流：IRM= 10 nA |
