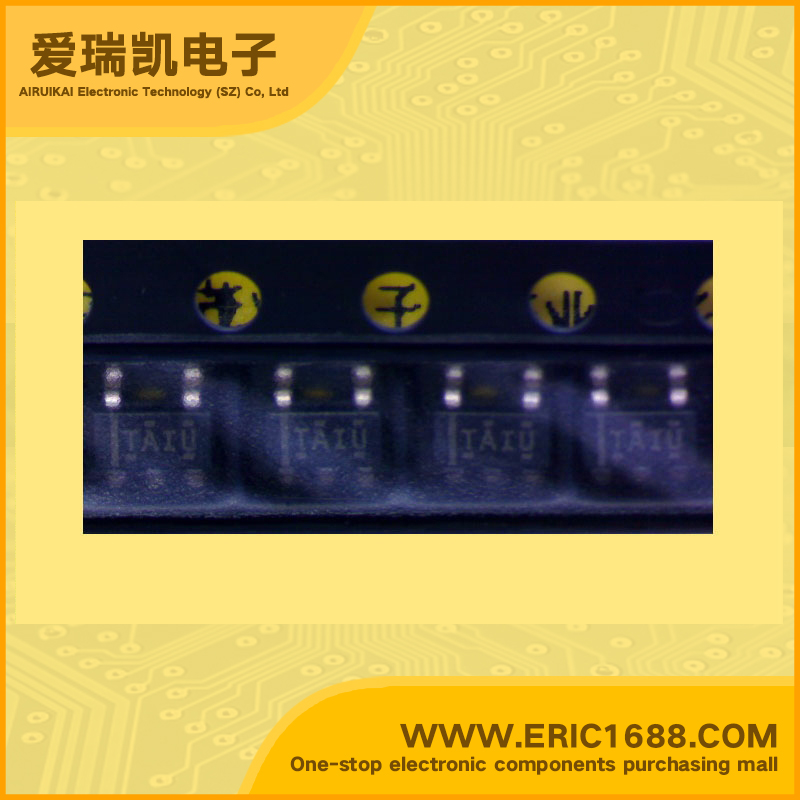

TL431AIDBV Voltage Reference Power Management IC 2.495 V ~ 36 V SOT-153/SOT23-5 marking TA High-Precision Programmable Reference

Hot selling goods

Product description
参考类型
Reference Type
旁路,可调节,精度 Shunt, Adjustable, Precision
输出电压Vo
Voltage - Output
2.495 V ~ 36 V
误差
Tolerance
±1%
温度系数
Temperature Coefficient
92ppm/°C
输入电压
Voltage - Input
2.495 V ~ 36 V
阴极电流
Current - Cathode
700µA
输出电流IOUT
Current - Output
100mA/0.1A
Description & ApplicationsFEATURES • PRECISION PROGRAMMABLE REFERENCE • Operation From −40°C to 125°C • Typical Temperature Drift (TL431B) • Reference Voltage Tolerance at 25°C – 6 mV (C Temp) – 0.5% B Grade – 14 mV (I Temp, Q Temp) – 1%.A Grade – 2% Standard Grade • Low Output Noise • 0.2-Ω Typical Output Impedance • Sink-Current Capability 1 mA to 100 mA • Adjustable Output Voltage Vref to 36 V
描述与应用特点 •高精度可编程参考 •从-40°C至125°C操作 •典型温度漂移(TL431B) •参考电压容差在25℃ - 6 MV(C温度) - 0.5%B级 - 14毫伏(I,Q温度温度) - 1%。A级 - 2%标准级 •低输出噪声 •0.2-Ω典型的输出阻抗 •灌电流能力1 mA至百毫安 •可调输出电压VREF至36 V
