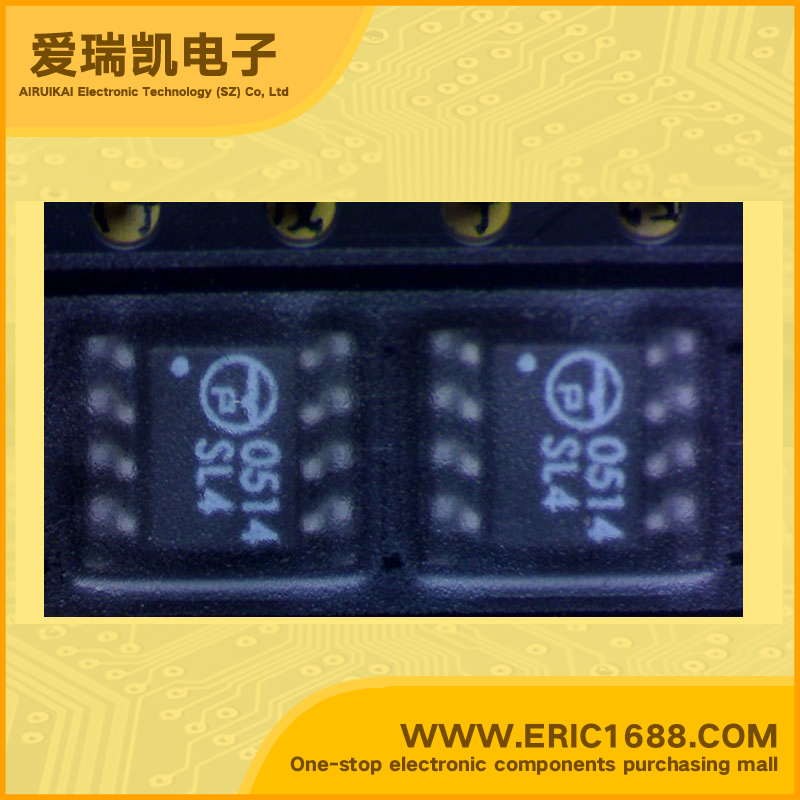

SLVU2.8-4-T7 TVS/ESD 2.8V 30A so8 marking SL4
| 极性 Polarization | |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | 2.8V |
| 反向击穿电压VBR Breakdown Voltage | 3.0V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 600W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | 30A |
| 额定耗散功率Pd Power dissipation | |
| Description & Applications | FEATURES • 600 WATT MULTI-LINE ULTRA LOW CAPACITANCE TVS ARRAY • Compatible with IEC 61000-4-2 (ESD): Air - 15kV, Contact - 8kV • Compatible with IEC 61000-4-4 (EFT): 40A - 5/50ns • Compatible with IEC 61000-4-5 (Surge): 24A, 8/20µs - Level 2(LineGnd) & Level 3(Line-Line) • 600 Watts Peak Pulse Power per Line (tp = 8/20µs) • Protects up to Two Line Pairs • Low Leakage Current < 1.0µA • Ultra Low Capacitance: 3pF Typical • RoHS Compliant • REACH Compliant APPLICATIONS • Ethernet - 10/100/1000 Base T • SMART Phones • Audio/Video Inputs • Portable Electronics |
| 描述与应用 | 特点 •600瓦多线超低电容TVS阵列•兼容IEC 61000-4-2（ESD）：空气 - 15kV的联系 - 8kV的 •兼容IEC61000-4-4（EFT）：40A - 5/50ns •兼容IEC61000-4-5（浪涌）：24A，8/20μS - 2级（LineGnd）的3级（线 - 线） •600瓦每线的峰值脉冲功率（TP =8/20μS） •保护两线对 •低漏电流<1.0μA •超低电容：3PF典型的 •符合RoHS标准 •REACH标准 应用 •以太网 - 10/100/1000 BASE T •智能手机 •音频/视频输入 •便携式电子产品 |
