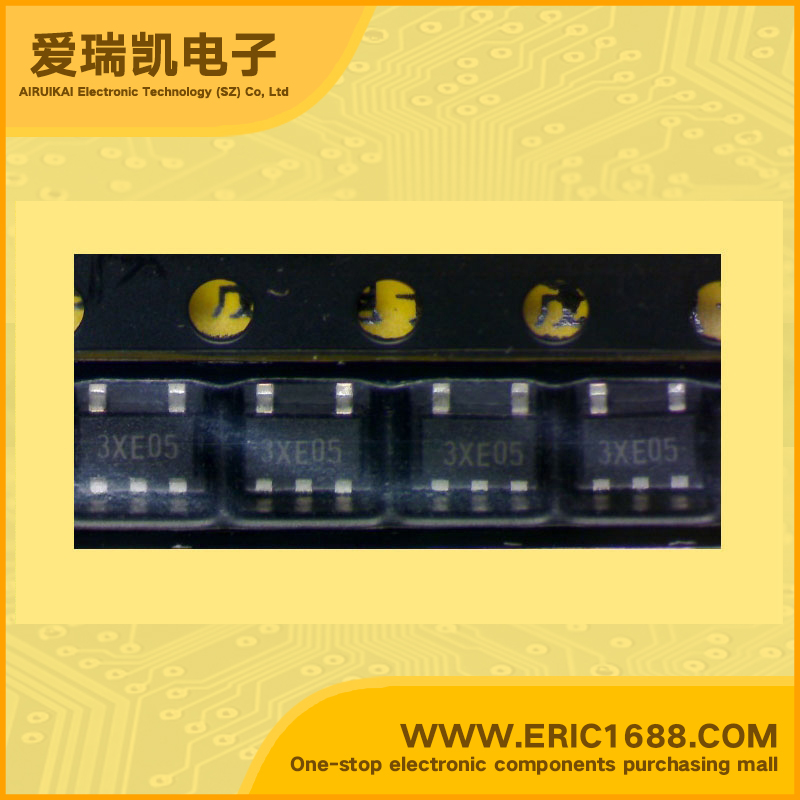

XC6221B152MR LDO Voltage Regulator 1.5V 160mV/0.16V With Enable Pin SOT-153/SOT-25/SOT23-5 marking 3XE Short-Circuit Protection Over-Temperature Protection

Hot selling goods

Product description
电路数量
Number of Regulators
1
输入电压VIN
Voltage - Input
-0.3~6.5V
输出电压VOUT
Voltage - Output
1.5V
输出电流Io
Current - Output
100mA/0.1A
最大压降VDO
Voltage - Dropout
160mV/0.16V
带使能脚EN/CE(ON/OFF功能)
With Enable Pin
有 Yes
最大耗散功率Pd
Power dissipation
250mW/0.25W
Description & ApplicationsLow ESR caps compatible high speed LDO voltage regulators with ON/OFF switch •Output Current : 200mA •Dropout Voltage : 80mV@ IOUT=100mA, VOUT(T)=3.0V •Operating Voltage Range : 1.6V ~ 6.0V •Output Voltage •Setting Range : 0.8V~4.0V (50mV increments) •Accuracy : +2% (VOUT >1.5V) +30mV (VOUT≦1.45V) •Low Power Consumption : 25μA (TYP.) •Standby Current : Less than 0.1μA •High Ripple Rejection : 70dB @ 1kHz •Operating Temperature Range : -40℃~85℃ •Low ESR Capacitor : 1.0μF Ceramic capacitor
描述与应用低ESR帽ON / OFF开关兼容的高速LDO电压稳压器 •输出电流:200mA到250mA<上(TYP.)>的 •漏失电压:80mV的@ I OUT =100MA VOUT= 3.0V(T) •工作电压范围:1.6V〜6.0V •输出电压 •设置范围:0.8V〜4.0V(50mV增量) •精度:+2%(VOUT> 1.5V)30毫伏(VOUT≦1.45V) •低功耗:25μA(典型值) •待机电流小于0.1μA •高纹波抑制:70分贝@1KHZ •工作温度范围:-40℃〜85℃ •低ESR电容:1.0μF陶瓷电容器
