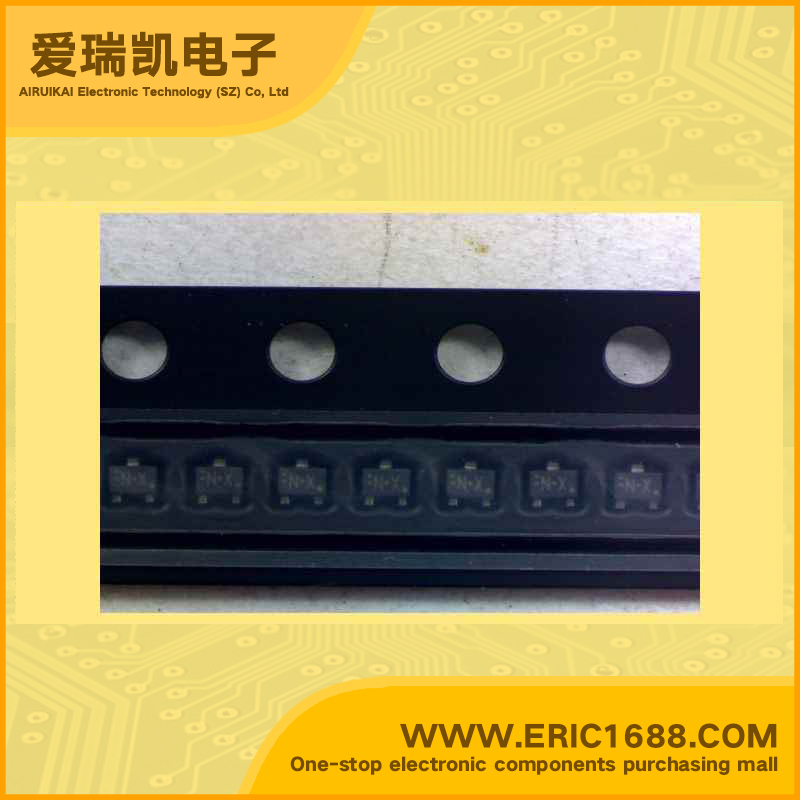

SSM3K36MFV MOSFET N-Channel 20V 500mA/0.5A SOT-723/VESM marking NX

Price (excluding freight):
Batches(PCS):
$0.079
≤499
$0.071
≤1999
$0.059
≤3999
$0.051
≤7999
$0.048
FCL

Hot selling goods

Product description
最大源漏极电压Vds Drain-Source Voltage20V
最大栅源极电压Vgs(±) Gate-Source Voltage10V
最大漏极电流Id Drain Current500mA/0.5A
源漏极导通电阻ΩRds DΩ/Ohmain-SouΩ/Ohmce On-State Ω/Ohmesistance0.66Ω/Ohm @200mA,4.5V
开启电压Vgs(th) Gate-Source Threshold Voltage0.35-1.0V
耗散功率Pd Power Dissipation150mW/0.15W
Description & ApplicationsHigh-Speed Switching Applications • 1.5-V drive • Low ON-resistance : Ron = 1.52 Ω (max) (@VGS = 1.5 V) Ron = 1.14 Ω (max) (@VGS = 1.8 V) Ron = 0.85 Ω (max) (@VGS = 2.5 V) :Ron = 0.66 Ω (max) (@VGS = 4.5 V) Ron = 0.63 Ω (max) (@VGS = 5.0 V)
描述与应用高速开关应用 •1.5-V驱动器 •低导通电阻:罗恩= 1.52Ω(最大值)(@ VGS= 1.5 V) 罗恩= 1.14Ω(最大)(@ VGS=1.8 V) 罗恩= 0.85Ω(最大)(@ VGS= 2.5 V) 罗恩= 0.66Ω(最大)(@ VGS=4.5 V) 罗恩= 0.63Ω(最大值)(@ VGS= 5.0 V)
