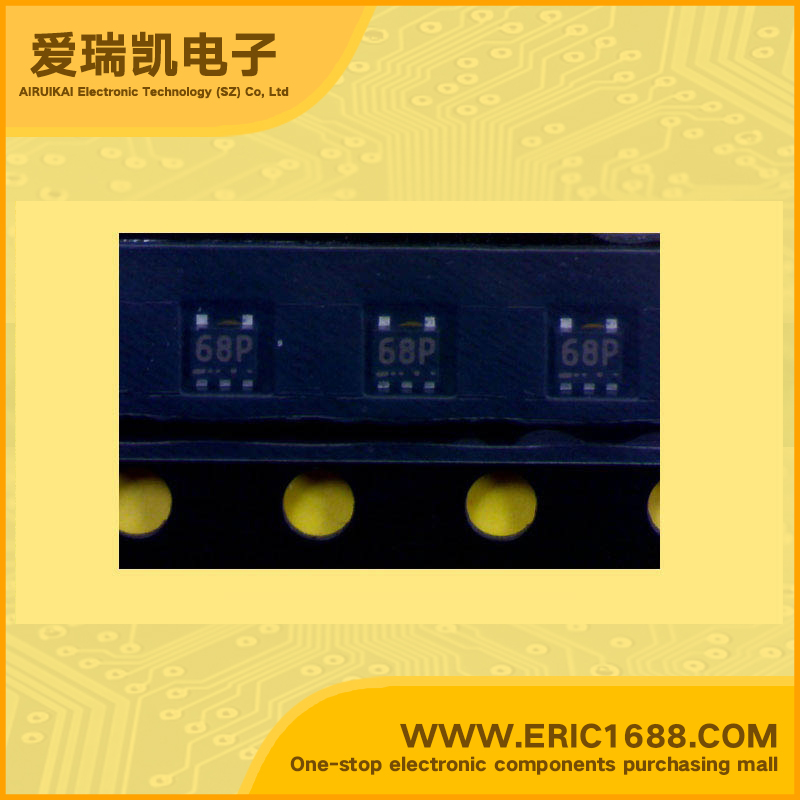

NNCD6.8PL TVS/ESD 0.2W/200mW SOT553-6.8V marking 68P
| 极性 Polarization | 单向 Unidirectional |
| 反向关断电压/工作电压VRWM Reverse Standoff Voltage | |
| 反向击穿电压VBR Breakdown Voltage | 6.8V |
| 峰值脉冲耗散功率PPPM Peak Pulse Power Dissipation | 85W |
| 峰值脉冲电流IPPm Peak Forward Surge Current | |
| 额定耗散功率Pd Power dissipation | 0.2W/200mW |
| Description & Applications | FEATURES • E.S.D NOISE CLIPPING DIODES • 5-PIN SUPER SMALL MINI MOLD (FLAT LEAD TYPE)ELECTROSTATIC DISCHARGE NOISE CLIPPING DIODE(QUAD TYPE: COMMON ANODE) • Based on the electrostatic discharge immunity test (IEC61000-4-2),the product assures the minimum endurance of 30 kV. • With four elements in the super mini mold package, the product canachieve high density and automatic packaging. APPLICATIONS • External interface circuit ESD absorption • Circuit for surge absorber |
| 描述与应用 | 特点 •ESD噪音限幅二极管 •5-PIN超小型迷你模具（扁平引线型）静电放电噪声削波二极管（四型：共阳极） •基于静电放电抗扰度试验（IEC61000-4-2），产品保证了最低的续航能力为30千伏。 •在超小型模具包有四个要素，该产品可实现高密度和自动包装。 应用 •外部接口电路的ESD吸收 •浪涌吸收电路 |
