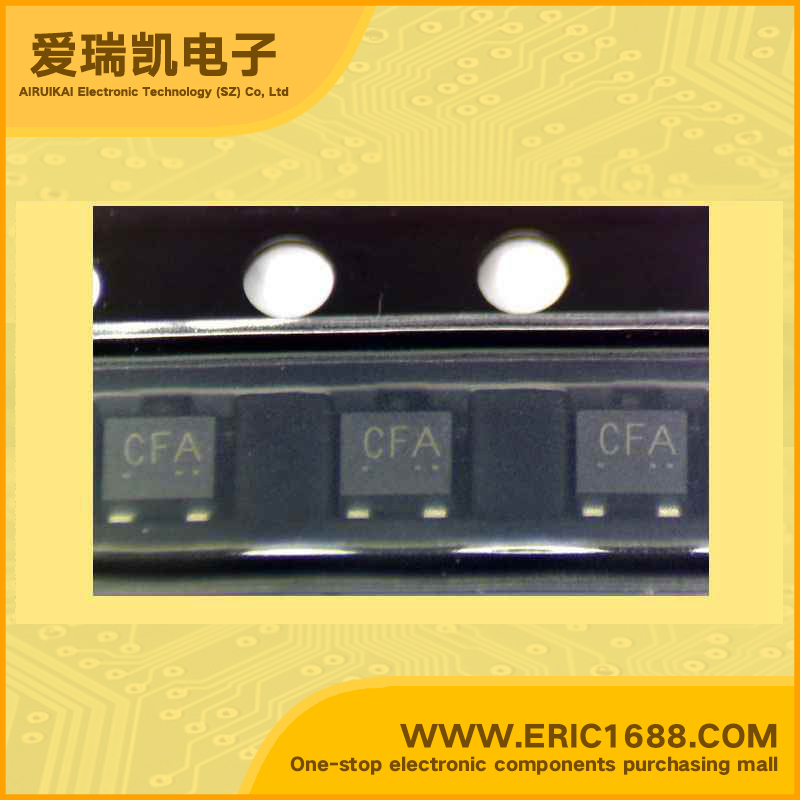

2SC6135 NPN Transistors(BJT) 100V 1A 400~1000 120mV/0.12V SOT-323/SC-70/USM marking CFA fast switch DC-DCswitch
| 集电极-基极反向击穿电压V(BR)CBO Collector-Base Voltage(VCBO) | 100V |
| 集电极-发射极反向击穿电压V(BR)CEO Collector-Emitter Voltage(VCEO) | 50V |
| 集电极连续输出电流IC Collector Current(IC) | 1A |
| 截止频率fT Transtion Frequency(fT) | |
| 直流电流增益hFE DC Current Gain(hFE) | 400~1000 |
| 管压降VCE（sat） Collector-Emitter Saturation Voltage | 120mV/0.12V |
| 耗散功率Pc Power Dissipation | 800mW/0.8W |
| Description & Applications | Silicon NPN epitaxial planar type High-Speed Switching Applications DC-DC Converter Applications Strobe Applications features • High DC current gain: hFE = 400 to 1000 (IC = 0.1A) • Low collector-emitter saturation voltage: VCE (sat) = 0.17 V (max) • High-speed switching: tf = 85 ns (typ.) |
| 描述与应用 | NPN硅外延平面型 高速开关应用 DC-DC转换器应用 频闪应用 特点 •高直流电流增益：HFE=400至1000（IC= 0.1A） •低集电极 - 发射极饱和电压VCE（饱和）= 0.17 V（最大值） •高速开关：TF =85 ns |
