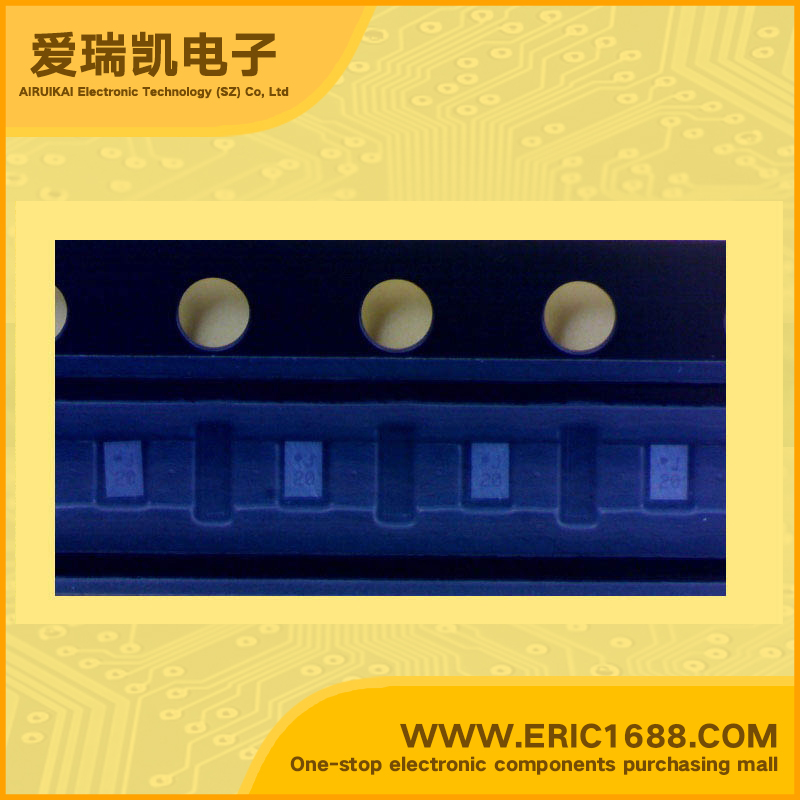

Integrated Circuit(IC) NOR gate TC7SP302WBG WCSP6 marking j

Hot selling goods

Product description
逻辑类型
Logic Type
或非门 NOR Gate
电路数
Number of Circuits
4
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
1.1V~2.7V
静态电流Iq
Current - Quiescent (Max)
2uA
输出高,低电平电流
Current - Output High, Low
低逻辑电平
Logic Level - Low
高逻辑电平
Logic Level - High
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
Description & ApplicationsDual supply 2-Input NOR Gate with Level Translator ;• Level converter for interfacing 1.2-V to 1.8-V, 1.2-V to 2.5-V, 1.2-V to 3.3-V, 1.5-V to 2.5-V, 1.5-V to 3.3-V, 1.8-V to 2.5-V, 1.8-V to 3.3-V or 2.5 V to 3.3-V system. • High-speed operation : tpd = 6.8 ns (max) (VCCA = 2.5 ± 0.2 V, VCCB = 3.3 ± 0.3 V) tpd = 7.8 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 3.3 ± 0.3 V) tpd = 9.0 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 31 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 3.3 ± 0.3 V) tpd = 9.5 ns (max) (VCCA = 1.8 ± 0.15 V, VCCB = 2.5 ± 0.2 V) tpd = 10.5 ns (max) (VCCA = 1.5 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 32 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 2.5 ± 0.2 V) tpd = 37 ns (max) (VCCA = 1.2 ± 0.1 V, VCCB = 1.8 ± 0.15 V) • Output current : IOH/IOL = ±12 mA (min) (VCC = 3.0 V) IOH/IOL = ±9mA (min) (VCC = 2.3 V) IOH/IOL = ±3 mA (min) (VCC = 1.65 V) • Latch-up performance: -300 mA • ESD performance: Machine model ≥ ±200 V Human body model ≥ ±2000 V • Ultra-small package: WCSP6 • Power-down protection is provided on all inputs and outputs
描述与应用双电源2输入或非门与电平转换器;•接口1.2-V,1.8 V,1.2-V到2.5 V,1.2-V到3.3 V,1.5 V,2.5 V,1.5 V至3.3 V,1.8 V的电平转换器 2.5 V,1.8 V至3.3 V或2.5 V至3.3 V系统。 •高速操作:TPD =6.8纳秒(最大)(VCCA=2.5±0.2 V VCCB=3.3±0.3 V)       TPD =7.8纳秒(最大)(VCCA=1.8±0.15 V,VCCB=3.3±0.3 V)       TPD =9.0 ns(最大)(VCCA=1.5±0.1 V VCCB=3.3±0.3 V)       TPD =31 ns(最大)(VCCA=1.2±0.1 V VCCB=3.3±0.3 V)       TPD =9.5纳秒(最大值)(VCCA=1.8±0.15 V,VCCB=2.5±0.2 V)         TPD =10.5 ns(最大)(VCCA=1.5±0.1 V VCCB=2.5±0.2 V)         TPD =32 ns(最大)(VCCA=1.2±0.1 V,VCCB=2.5±0.2 V)         TPD =37 ns(最大)(VCCA=1.2±0.1 V VCCB=1.8±0.15 V) •输出电流:IOH/ IOL=±12 mA(分钟)(VCC=3.0 V)       IOH/ IOL=±9毫安(分钟)(VCC=2.3 V)       IOH/ IOL=±3 mA(分钟)(VCC= 1.65 V) •闭锁性能:-300毫安 •ESD性能:机器型号≥±200 V   人体模型≥±2000 V •超小封装:WCSP6 •掉电保护是对所有的输入和输出
