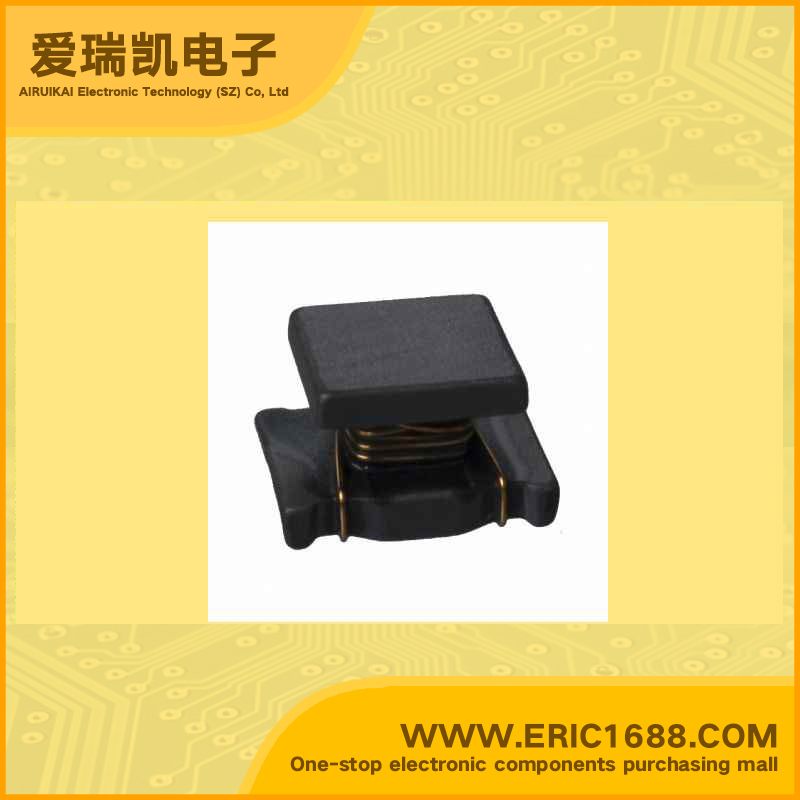

low power inductor LQH43MN102K03L 1000UH 4532-102K
| 电感值Inductance | 1000UH |
| 误差Tolerance | ±10% |
| 额定电流Current Rating | 50mA |
| 饱和电流Current - Saturation | |
| 不同频率时的Q值Q @ Frequency | 40@ 796KHZ |
| 自振谐频率SRFFrequency - Self Resonant | 2MHz |
| DC电阻DCRDC Resistance (DCR) | 25Ω/Ohm |
| 屏蔽Shielding | 无屏蔽 Unshielded |
| Description & Applications | LQH43M/N Series LQH43M/N series consists of wound type chip coils for general use by Murata's original auto winding technology and ferrite core. Features 1. High Q value at high frequency and low DC resistance 2. Wide inductance range from 1.0 to 2200 micro H 3. Large current and large inductance |
| 描述与应用 | LQH43M/ N系列 LQH43M/ N系列是采用村田制作所的原自动绕线技术和铁氧体磁芯线圈绕线型芯片。 特点 1。在高频高Q值和低直流电阻 2。宽泛的电感值范围从1.0到2200微ħ 3。大电流和大电感 |
