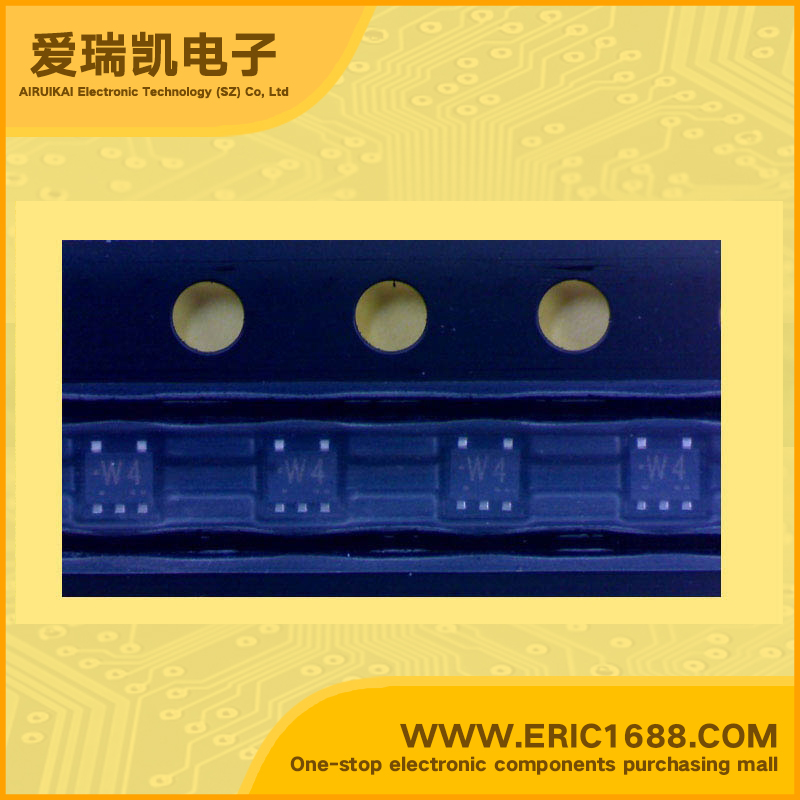

Integrated Circuit(IC) OR gate TC7SG32FE SOT-553/ESV marking W4

Hot selling goods

Product description
逻辑类型
Logic Type
或门 OR Gate
电路数
Number of Circuits
1
输入数
Number of Inputs
2
电源电压Vcc
Voltage - Supply
0.9v~3.6V
静态电流Iq
Current - Quiescent (Max)
10uA
输出高,低电平电流
Current - Output High, Low
-8mA,8mA
低逻辑电平
Logic Level - Low
0.7V~0.8V
高逻辑电平
Logic Level - High
1.7V~2v
传播延迟时间@Vcc,CL
Max Propagation Delay @ V, Max CL
21ns @3.3V ,15pF
Description & Applications2-Input OR Gate ;• High output current : ±8 mA (min) at VCC = 3.0 V • Super high speed operation : tpd = 2.4 ns (typ.) at VCC = 3.3 V,15pF • Operating voltage range : VCC = 0.9 to 3.6 V • 5.5-V tolerant inputs • 3.6-V power down protection output
描述与应用2输入或门;•高输出电流:±8毫安VCC=3.0 V(分钟) •超高速运转:TPD =2.4 ns(典型值) 在VCC =3.3 V,15PF •工作电压范围:VCC= 0.9到3.6 V •5.5-V宽容输入 •3.6-V断电保护输出
