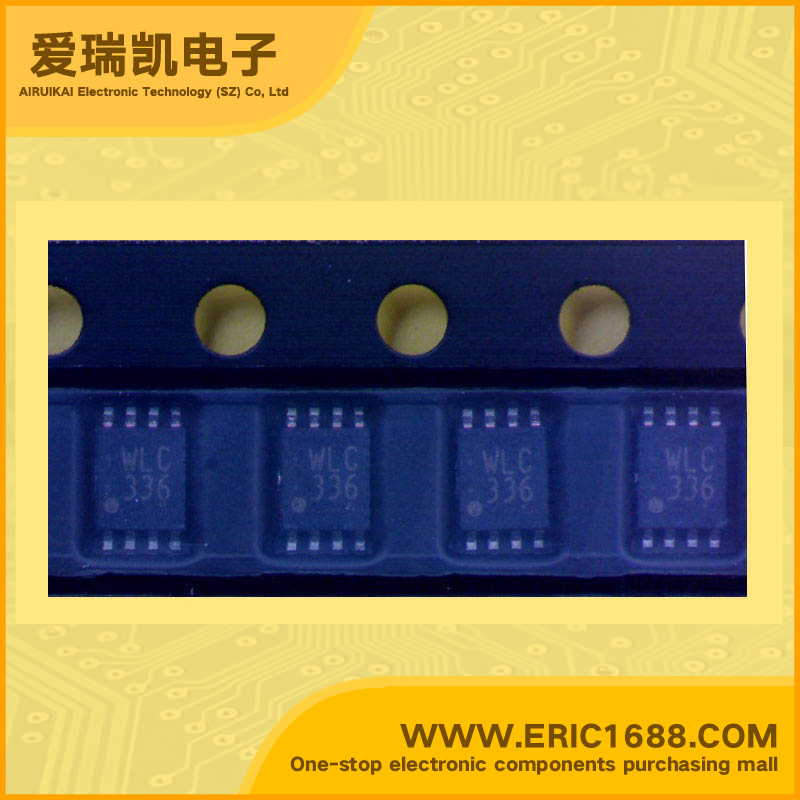

TC7WBL3306CFK Signal Switch, Multiplexer, Decoder VFSOP8/US8 marking MLC336
| 逻辑类型 Logic Type | 总线开关 Bus Switch |
| 电路数 Number of Circuits | |
| 输入数 Number of Inputs | |
| 电源电压Vcc Voltage - Supply | |
| 静态电流Iq Current - Quiescent (Max) | 单电源 Single Supply |
| 输出高，低电平电流 Current - Output High, Low | 1.65V ~ 3.6 V |
| 低逻辑电平 Logic Level - Low | The TC7WBL3306C and TC7WBL3305C are Low Voltage/Low Capacitance CMOS 4bit Bus Switches. The low ON-resistance of the switch allows connections to be made with minimal propagation delay time. The TC7WBL33306C requires the output enable (OE ) input to be set high to place the output into the high impedance state, whereas the TC7WBL3305C requires the output enable (OE) input to be set low to place the output into the high impedance. All inputs are equipped with protection circuits against static discharge. Operating voltage : VCC = 1.65 to 3.6 V ON-capacitance : CI/O = 7pF Switch On (typ.) @VCC = 3V ON-resistance : RON = 6.0 Ω (typ.) @VCC = 3V, VI/O = 0V ESD performance : Machine model ≥ ±200 V Human body model ≥ ±2000 V Power-down protection for inputs (OE and OE, I/O) Package : US8 |
| 高逻辑电平 Logic Level - High | TC7WBL3306C和TC7WBL3305C是低电压/低电容CMOS 4位的总线开关。低导通电阻的开关允许以最小的传播延迟时间连接。TC7WBL33306C要求输出使能(OE)输入设置高放置输出到高阻抗状态,而TC7WBL3305C要求允许输出使能(OE)输入设置低放置输出到高阻抗。所有输入都配有保护电路防止静电放电。 工作电压：VCC= 1.65到3.6 V ON电容：CI/O=7PF的的开关（典型值）@ VCC= 3V 导通电阻RON=6.0Ω（典型值）@ VCC= 3V，VI/ O= 0V ESD性能：机器型号≥±200 V 人体模式≥±2000 V 断电保护的输入（OE和OE，I/O） 包装：US8 |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | |
| Description & Applications | |
| 描述与应用 |
