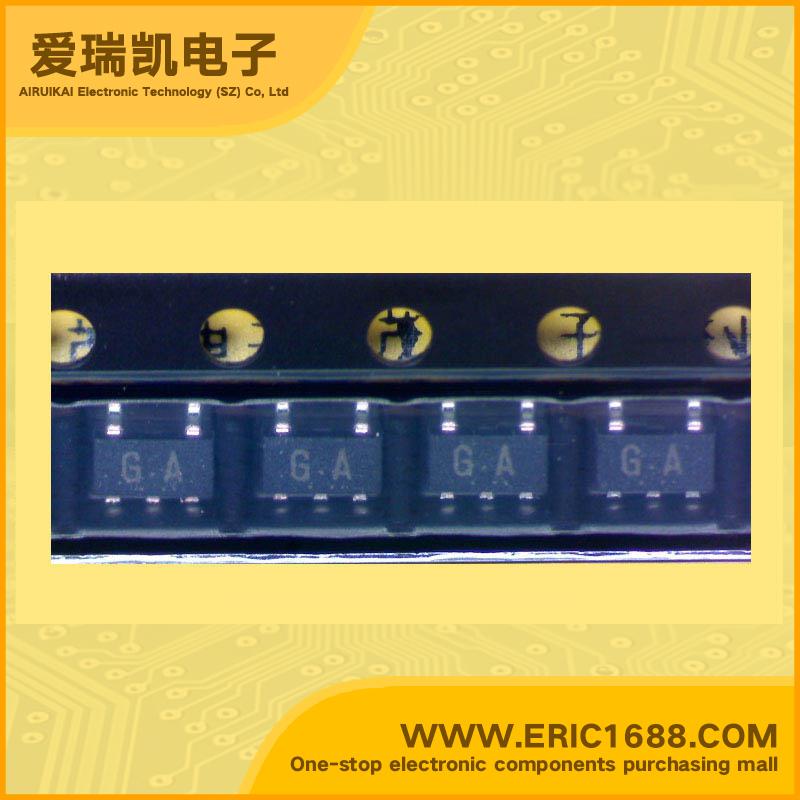

Integrated Circuit（IC） Inverting Schmitt trigger TC7SET14F SOT-153/SMV marking GA
| 逻辑类型 Logic Type | 反相施密特触发器 Inverting Schmitt trigger |
| 电路数 Number of Circuits | 1 |
| 输入数 Number of Inputs | 2 |
| 电源电压Vcc Voltage - Supply | 4.5V~5.5V |
| 静态电流Iq Current - Quiescent (Max) | 2uA |
| 输出高，低电平电流 Current - Output High, Low | -8mA,8mA |
| 低逻辑电平 Logic Level - Low | 0.8v |
| 高逻辑电平 Logic Level - High | 2V |
| 传播延迟时间@Vcc，CL Max Propagation Delay @ V, Max CL | 9ns @ 4.5V ~ 5.5V，50pF |
| Description & Applications | SCHMITT INVERTER ;High speed ................................. tpd = 5.0 ns (typ.) at VCC = 5 V, CL = 15pF • Low power dissipation .............. ICC = 2 μA (max) at Ta = 25°C • Compatible with TTL outputs. • 5.5V tolerant input. |
| 描述与应用 | 施密特逆变器;高速................................. TPD= 5.0纳秒（典型值） 在VCC = 5 V，CL=15PF •低功耗.............. ICC= 2μA（最大值）在Ta = 25°C •兼容TTL输出。 •5.5V宽容输入。 |
