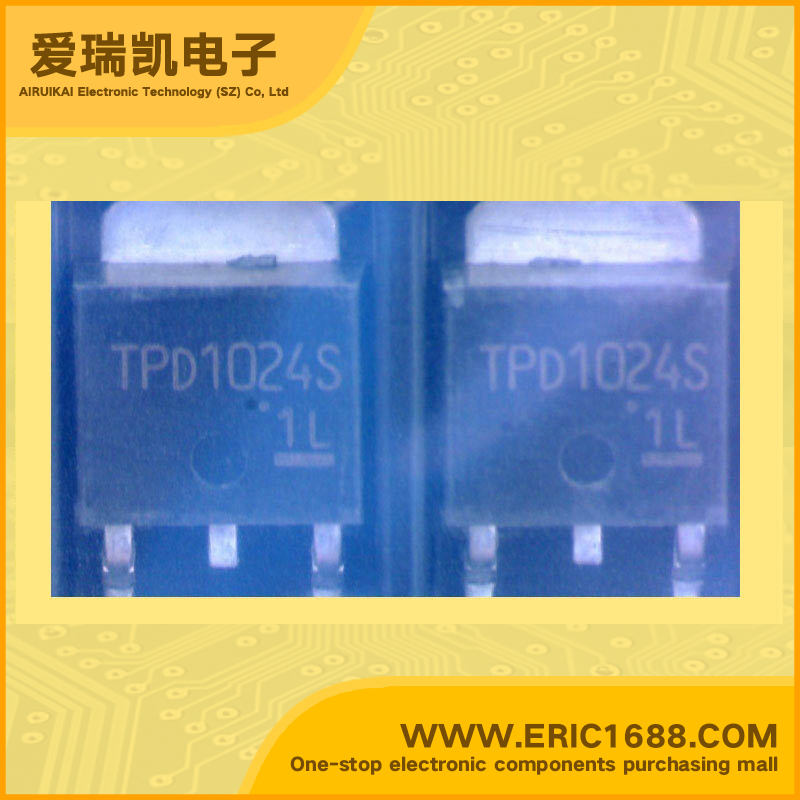

TPD1024S Power Distribution Switch TO-252 marking TPD1024S Low-side Power Switch for Motors, Solenoids, and Lamp Drivers
| 类型 Type |
低端开关 low-side |
| 输出数 Number of Outputs |
1 |
| Rds (On) | 500mΩ@5V |
| 内部开关 Internal Switch(s) |
无 No |
| 电流限制 Current Limit |
1.5A |
| 电压 - 输入 Voltage - Input |
18V |
| Description & Applications | •TOSHIBA Intelligent Power Device Silicon Monolithic Power MOS Integrated Circuit •Low-side Power Switch for Motors, Solenoids, and Lamp Drivers • A monolithic power IC with a new structure combining a control block and a vertical power MOS FET (π-MOS) on a single chip •Can directly drive a power load from a CMOS logic. •Built-in protection against overvoltage, load short-circuiting, and •thermal shutdown •Low on-resistance : RDS (ON) = 0.5 Ω(max), (@VIN = 5 V, Tj = 25°C) •3-pin power-molded package usable for surface mounting. |
| 描述与应用 | •东芝智能功率器件硅单片功率MOS集成电路 •低侧电源开关电机，螺线管和灯驱动器 •单片电源IC控制块相结合的一种新的结构 和一个垂直功率MOS FET（π-MOS）在一个芯片上 •可直接驱动功率负载从一个CMOS逻辑。 •内置过压保护，负载短路， •热关断 •低导通电阻RDS（ON）= 0.5Ω（最大值），（VIN= 5 V，TJ= 25°C） •3-pin电源模塑包装可用于表面安装。 |
