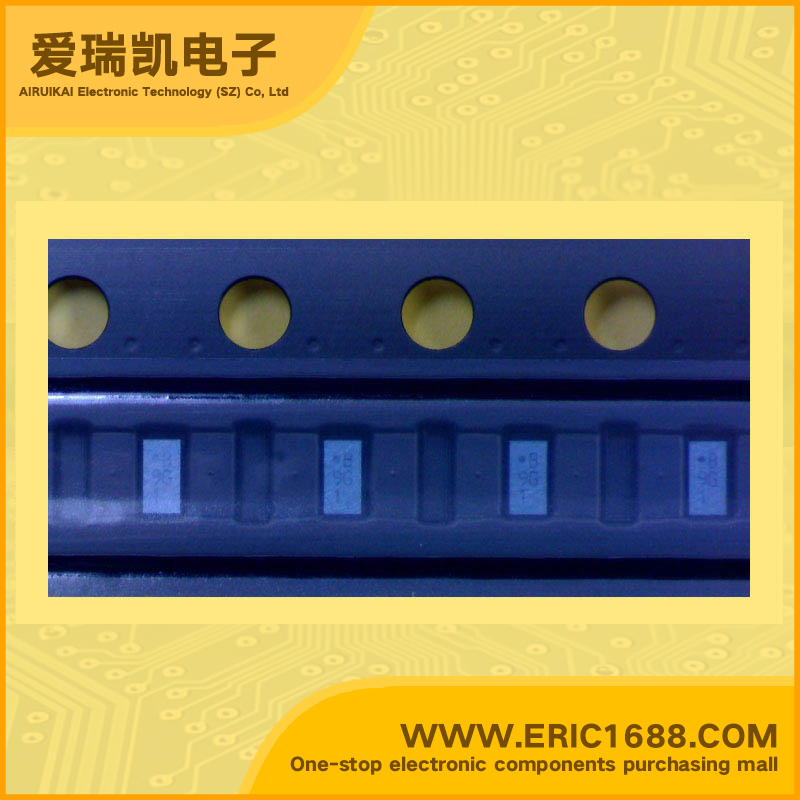

Integrated Circuit（IC） analog switch TC7USB31WBG WCSP10B
| 开关配置 Circuit | 2*单刀单掷 2*SPST |
| 导通电阻 On-State Resistance | 4.5Ω/Ohm |
| 电源电压 Voltage - Supply | 2.3V~3.6 V |
| Description & Applications | Dual SPST USB Switch CMOS Digital Integrated Circuit Silicon Monolithic TC7USB31 is high-speed CMOS dual SPST USB Switch. The low ON- resistance and the low capacitance of the switch allow connections to USB application. The TC7USB31 requires the output enable (OE ) input to be set high to place the output into the high impedance. All inputs are equipped with protection circuits against static discharge. ON-capacitance: CI/O = 5.5pF Switch ON(typ.) @VCC=3.3V ON-resistance: RON = 4.5 Ω (typ.) VCC=3 V, VI/O=0 V RON Flatness: RON(flat) = 1.2 Ω (typ.) @VCC=3 V Delta RON: ΔRON = 0.5 Ω (typ.) VCC=3 V ESD performance: Machine model ≥ ± 200V Human body model ≥ ± 2000V Power-down protection for inputs ( OE and I/O) |
| 描述与应用 | 双个单刀单掷USB开关 CMOS数字集成电路硅单片 TC7USB31是高速CMOS双SPST USB开关。该 低导通电阻和低的开关电容允许 连接到USB应用。 的TC7USB31需要输出使能（OE）输入 设置高放置到输出进入高阻抗。 所有输入都配备了防静电保护电路 放电。 ON电容：CI/ O开关ON=5.5pF（典型值）@ VCC=3.3V 导通电阻RON=4.5Ω（典型值）@ VCC= 3 V，VI/ O=0 V RON平坦度：RON（平）=1.2Ω（典型值）@ VCC=3 V 三角洲RON：ΔRON=0.5Ω（典型值）@ VCC=3 V ESD性能：机器型号≥±200V 人体模型≥±2000V 掉电保护的输入（OE和I / O） |
