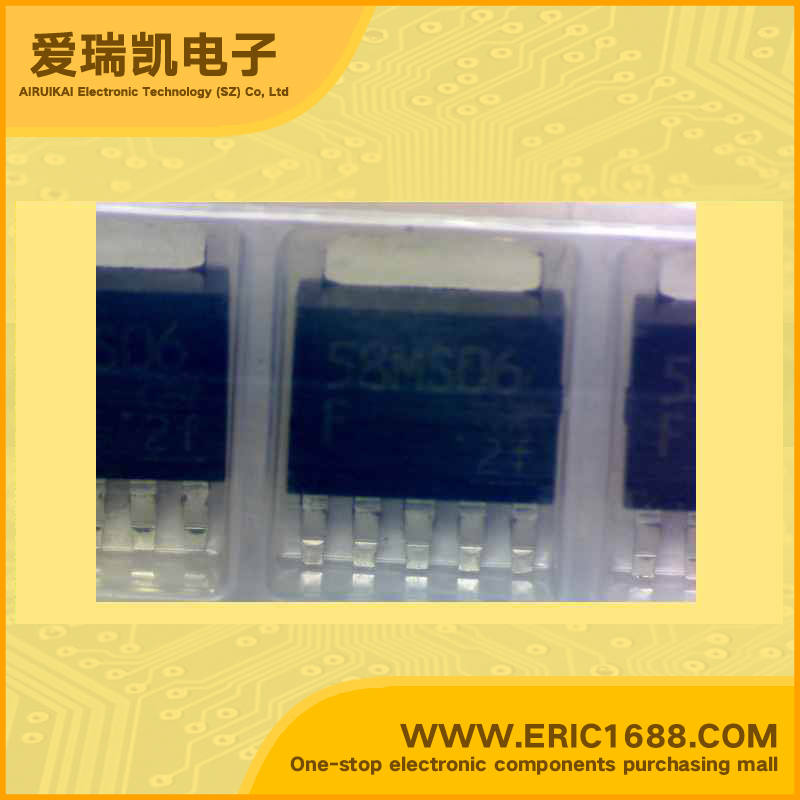

TA58MS06F LDO Voltage Regulator 6V 500mV/0.5V With Enable Pin TO-252-5 marking 58MS06F Short-Circuit Protection Over-Temperature Protection
| 电路数量 Number of Regulators | 1 |
| 输入电压VIN Voltage - Input | 29V |
| 输出电压VOUT Voltage - Output | 6V |
| 输出电流Io Current - Output | 500mA/0.5A |
| 最大压降VDO Voltage - Dropout | 0.7V Iout = 500 mA |
| 带使能脚EN/CE(ON/OFF功能) With Enable Pin | 有 Yes |
| 最大耗散功率Pd Power dissipation | 1W |
| Description & Applications | TOSHIBA Bipolar Linear Integrated Circuit Silicon Monolithic. * 500-mA Low Dropout Voltage Regulators with ON/OFF Control Switch . The TA58MS**F are small surface-mount low-dropout voltage regulators that provide up to 500mA of output current and an on/off control switch. The EN input can be used to turn on and off the device as necessary and thus helps save system power. The TA58MS**F are suitable for applications requiring low power consumption due to low-dropout voltage and low standby current. * Active-High on/off switch . * Up to 500-mA output current . * Output voltages: 3.3 / 5 / 6 / 8 / 9 / 12 V . * Output voltage accuracy : VOUT ± 3% (@Tj = 25°C) . * Low quiescent current: 2.5 mA typ. (@IOUT = 0 A) . * Low standby current (output OFF mode): 1.0μA (max) . * Low-dropout voltage: 0.7 V (max) (@IOUT = 500 mA) except the TA58MS033F . * Overcurrent protection / thermal shutdown / 60V load dump protection / overvoltage protection. |
| 描述与应用 | 东芝双极型线性集成电路硅单片。 *500 mA低压差稳压器，带ON / OFF控制开关。 的TA58MS** F是小型表面贴装低压差稳压器提供高达500mA的输出电流和开/关控制开关。该EN输入可以用来打开和关闭设备，必要的，因此，可以节省系统电源。的TA58MS** F是适合于要求低功耗低压差电压和低待机电流的应用。 *高电平on / off开关。 *高达500 mA的输出电流。 *输出电压：3.3/ 5/6/8/9/12 V。 *输出电压精度：VOUT±3％（@ TJ= 25°C）。 *低静态电流：2.5 mA（典型值）。 （@ IOUT=0）。 *低待机电流（输出OFF模式）：1.0μA（最大值）。 *低压差电压：0.7 V（最大）（@ IOUT= 500毫安）除了TA58MS033F。 *过流保护/热关机/60V的负载突降保护/过电压保护。 |
