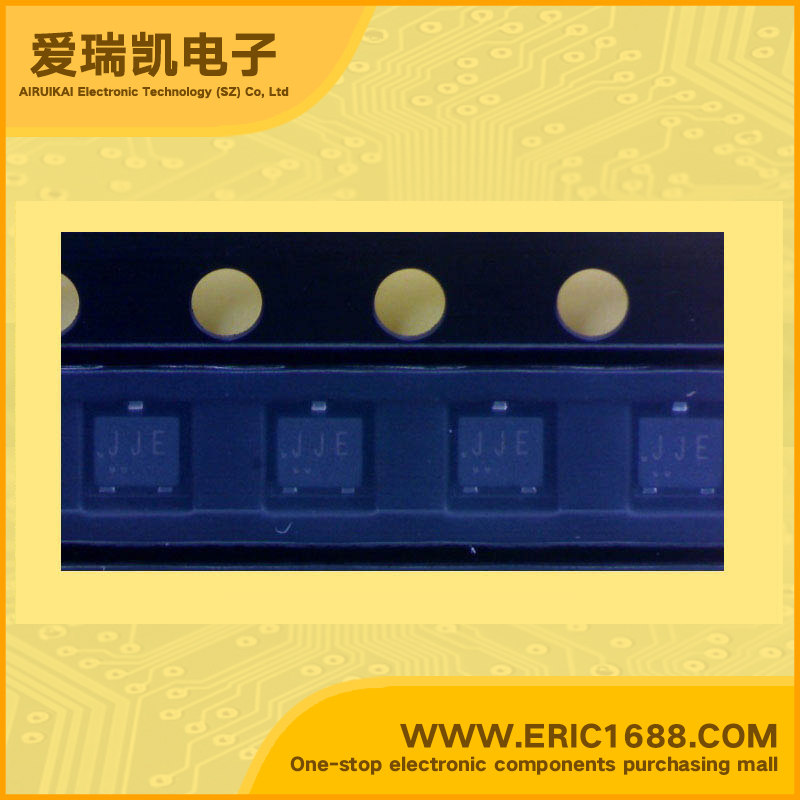

SSM3J129TU MOSFET P-Channel -20V -4.6A 0.037ohm SOT-323 marking JJE power managementswitch high-speed switch 1.5V drive low on-resistance
| 最大源漏极电压Vds Drain-Source Voltage | -20V |
| 最大栅源极电压Vgs(±) Gate-Source Voltage | 8V |
| 最大漏极电流Id Drain Current | -4.6A |
| 源漏极导通电阻Rds Drain-Source On-State Resistance | 0.037Ω @-3A,-4.5V |
| 开启电压Vgs（th） Gate-Source Threshold Voltage | -0.3V-1.0V |
| 耗散功率Pd Power Dissipation | 500mW/0.5W |
| Description & Applications | Power Management Switch Applications High-Speed Switching Applications •1.5 V drive •Low ON-resistance Ron = 137mΩ (max)(@VGS = -1.5 V) Ron = 88mΩ (max) (@VGS = -1.8 V) Ron = 62mΩ (max) (@VGS = -2.5 V) Ron = 46mΩ (max) (@VGS = -4.5 V) |
| 描述与应用 | 电源管理开关应用 高速开关应用 •1.5 V驱动器 •低导通电阻RON =137mΩ（最大）（@ VGS=-1.5 V） 罗恩=88mΩ（最大）（@ VGS=-1.8 V） 罗恩=62mΩ（最大）（@ VGS= -2.5 V） 罗恩=46mΩ（最大）（@ VGS= -4.5 V） |
